Description

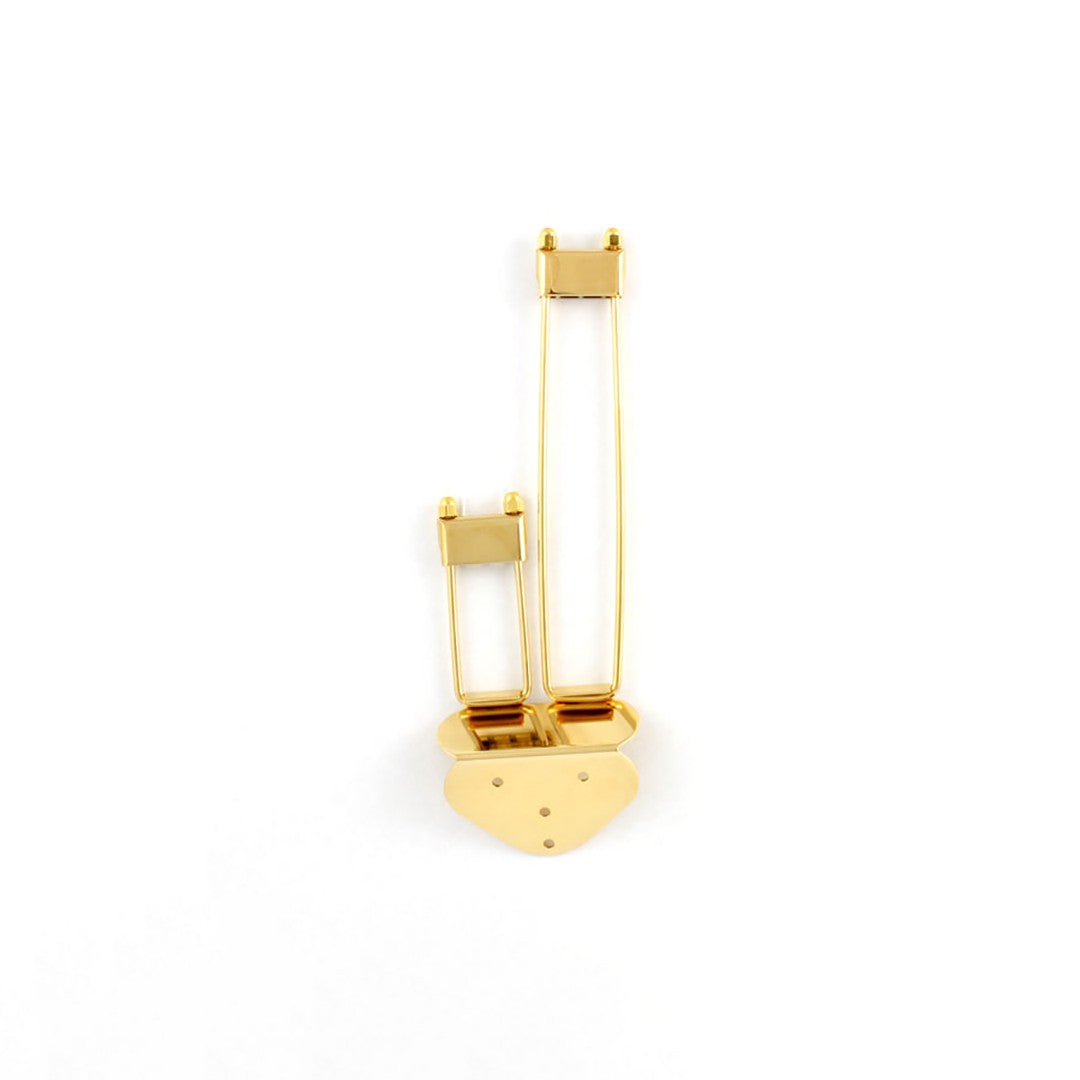

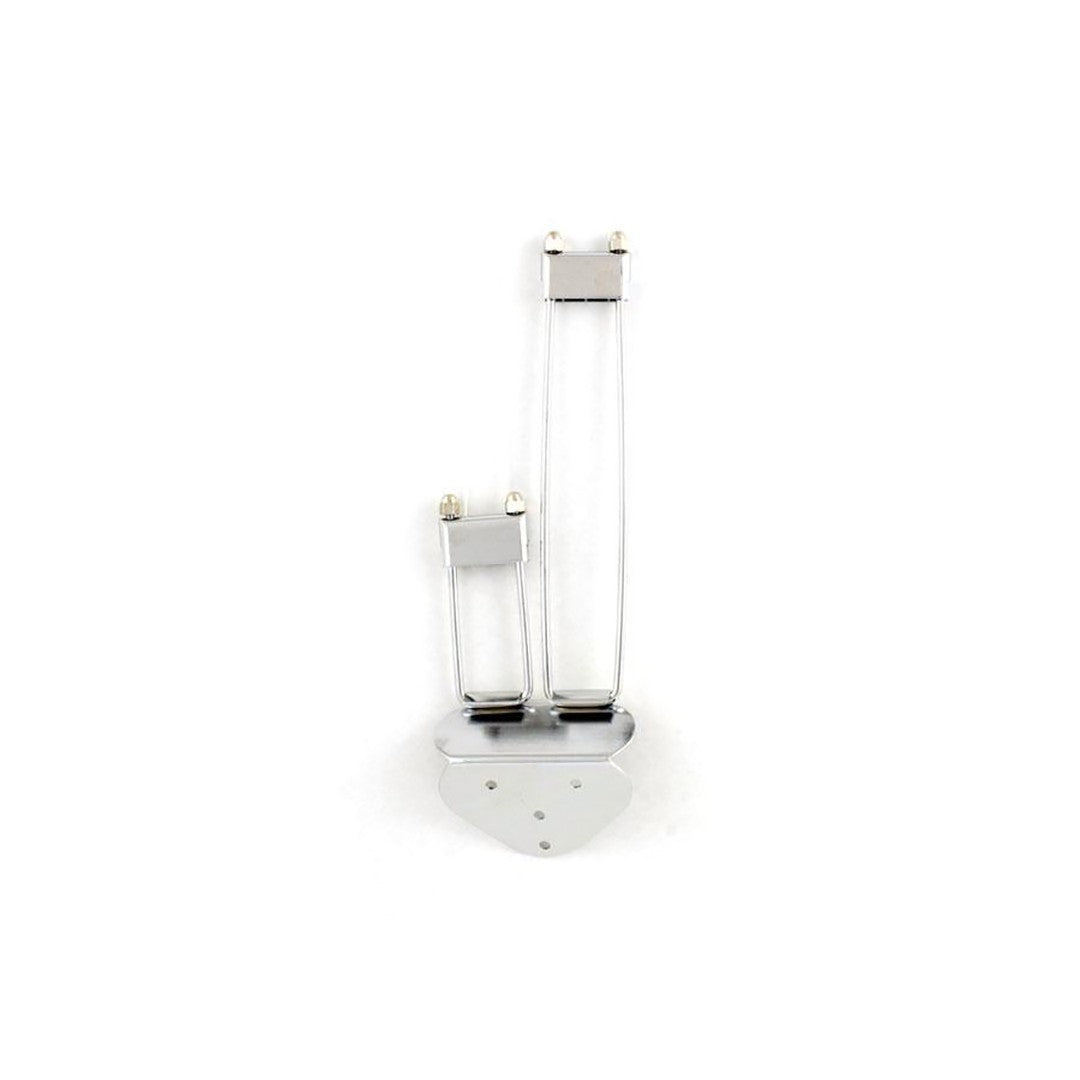

A vintage split-fork tailpiece design that traces back to archtop models from the 1940s. Unlike a standard trapeze where both sides are identical, the Frequensator's two forks are deliberately different lengths — the longer fork serves the bass strings, the shorter serves the treble strings. That asymmetry changes the string tension behind the bridge on each side independently, adding more depth and warmth to the low strings while keeping the top strings brighter and more articulate.
Benefits:
- Genuine vintage split-fork design for a classic archtop look
- Asymmetric string tension adds bass depth and treble brilliance in one tailpiece
- Straightforward mounting bracket installation
Features:
- Split trapeze fork design (long fork/short fork)
- Includes mounting hardware
Specifications:
- Mounting plate width (with screws): 2-17/32" (64.3mm)
- Mounting bracket length (holes to bend): 1-39/64" (41mm)
- Bracket length (bend to hook tops): 1-13/64" (30.5mm)
- Long trapeze section length (including string bracket): 6" (152mm)
- Short trapeze length (to string retainer bar): 2-1/2" (63.5mm)
