Description

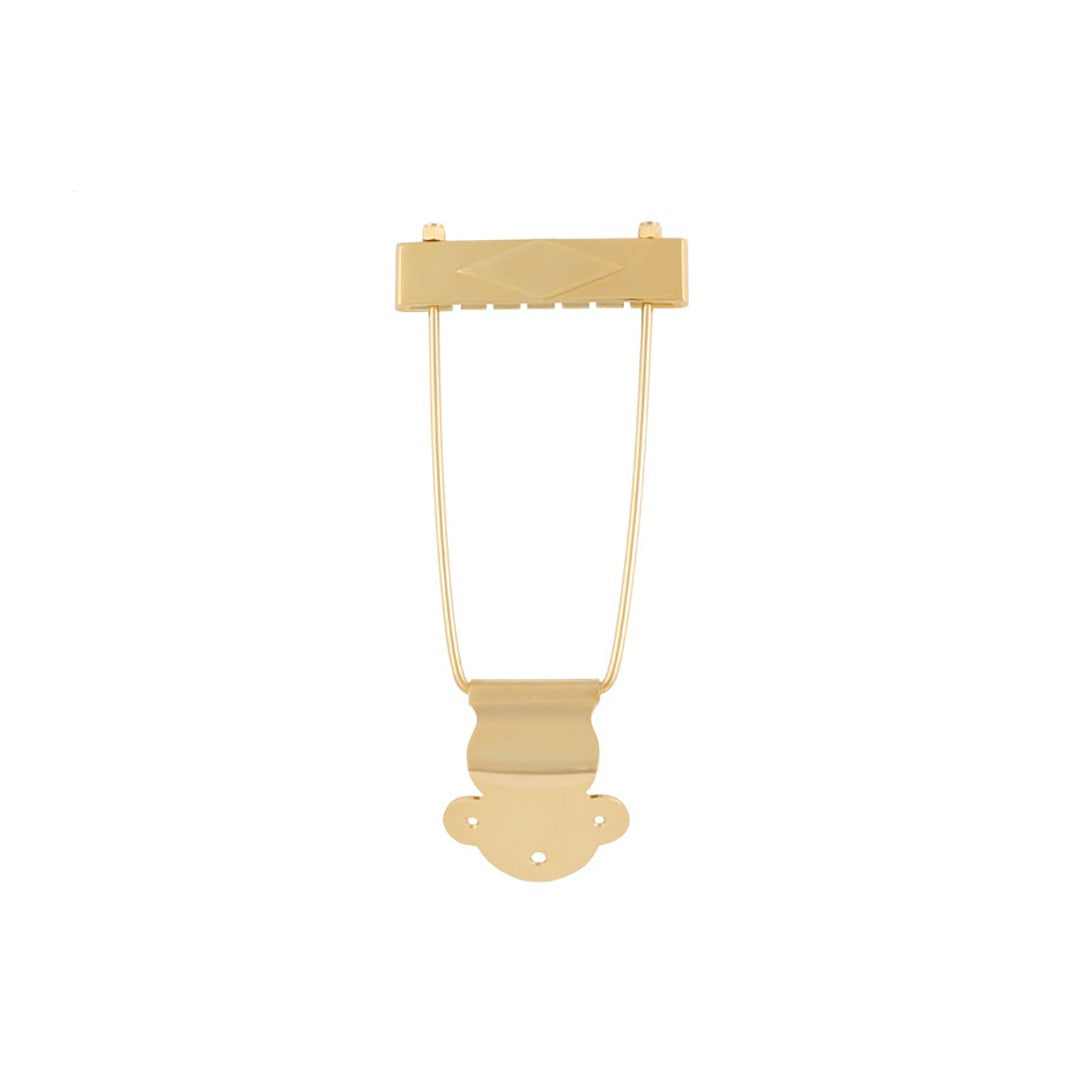

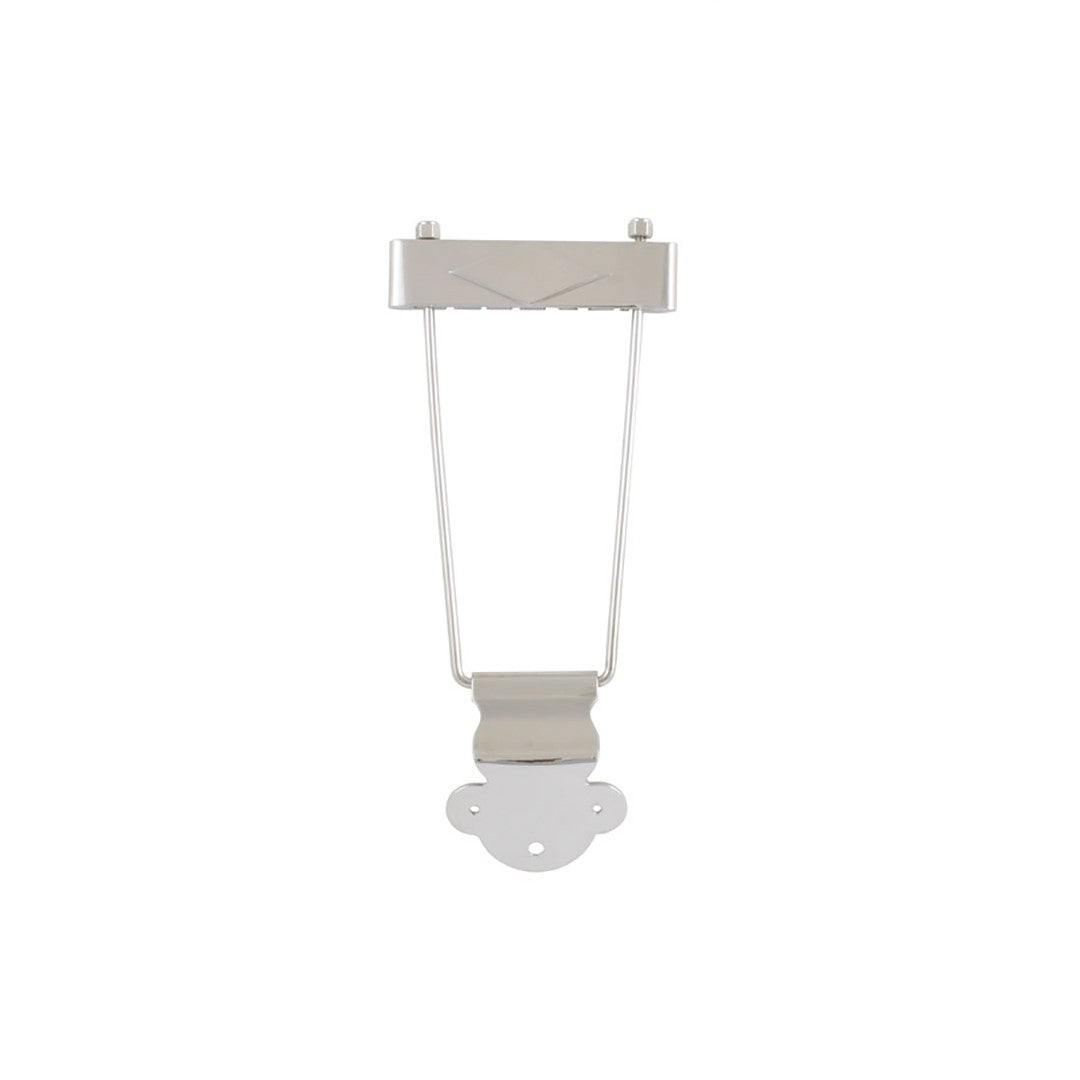

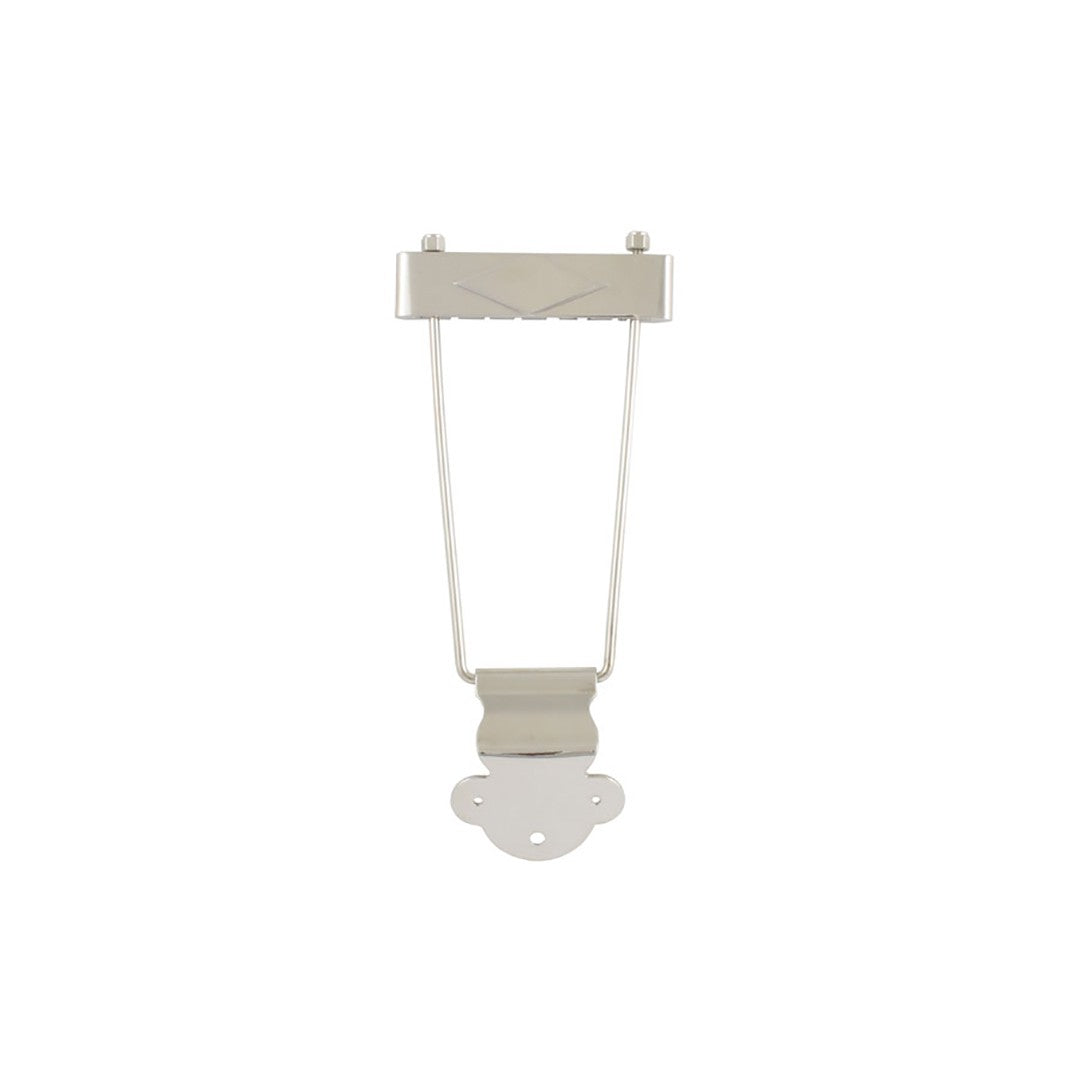

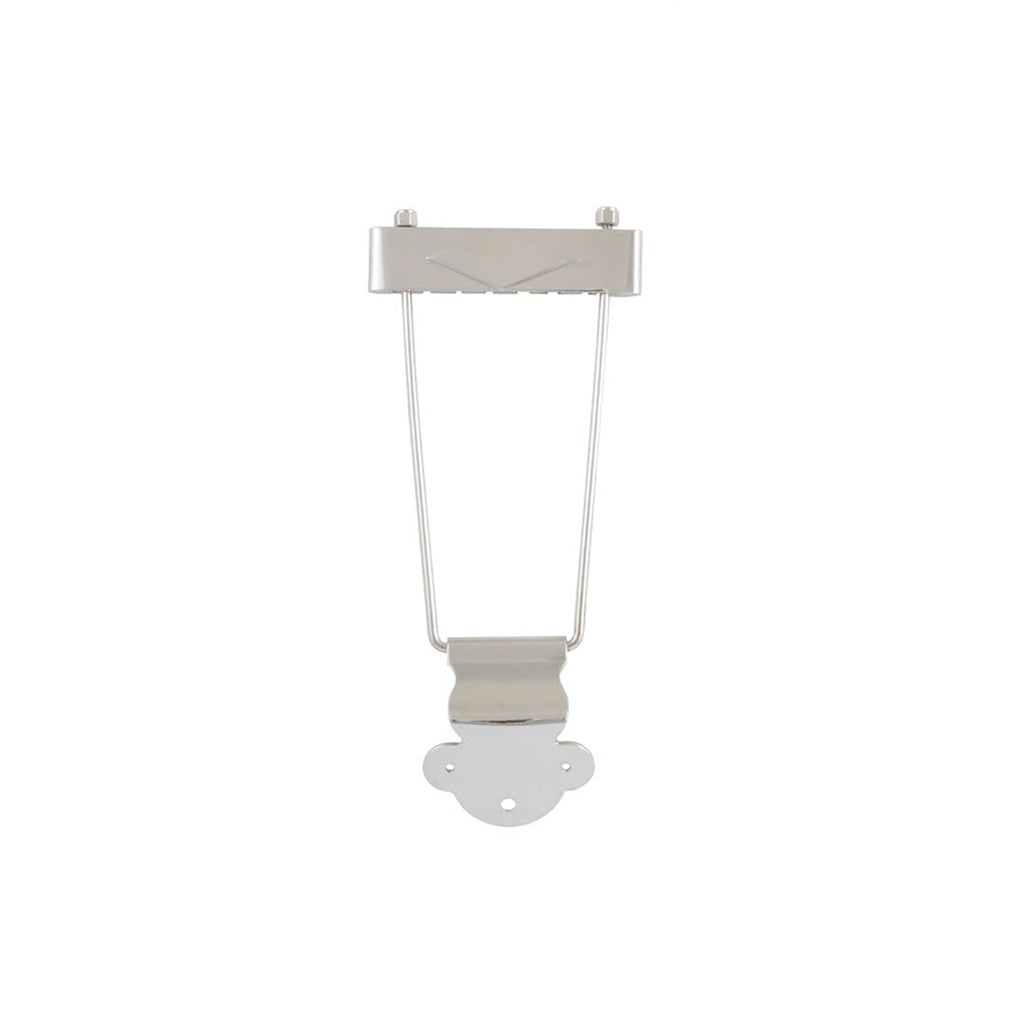

A vintage-style trapeze tailpiece built for hollow and semi-hollow archtop guitars — correct for many classic Gibson models like the ES-335 and similar designs. The die-cast string block features a decorative diamond accent, and the pressed-steel hinge and steel bar frame give it the authentic look and feel players expect on a traditional archtop.
Benefits:
- Authentic vintage archtop look and function
- Correct fit for many classic Gibson-style hollow and semi-hollow guitars
- Includes mounting screws for a straightforward, drop-in installation
Installation note: the hinge mounts to the end of the guitar body — take care to center the tailpiece so the strings run straight over the bridge before tightening down.
Features:
- Die-cast string block with diamond decoration
- Pressed steel hinge, steel bar frame construction
- Includes mounting screws
Specifications:
- Length: 6" (152mm)
- Width: 3-5/16" (83mm)
- String spacing (E to E): 1-7/8" (48mm)
- Screw hole spacing: 1-5/16" x 13/16" (33mm x 21mm)
- Minimum body thickness required: 1-1/2" (38mm)
Why Buy From Arkansas Musicworks
We stock genuine Allparts hardware sourced directly through authorized distribution, backed by our team's own setup expertise if you have questions.
