Description

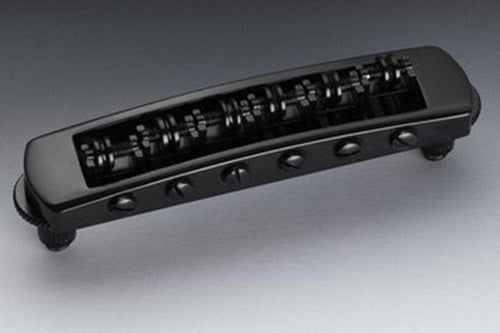

Schaller's reimagining of the classic Tune-o-matic, with low-friction roller saddles replacing the fixed saddles of a standard bridge — a genuine functional upgrade for tuning stability, especially on guitars equipped with a Bigsby vibrato, where string friction over a standard saddle is a common cause of tuning slippage during use.
Two saddle roller types included for optimized feel per string: wide flat rollers for the low strings (E, A, D) and tighter U-shaped rollers for the high strings (G, B, E), balancing tone and comfortable string bending across the full set.
Benefits:
- Low-friction rollers significantly improve tuning stability, especially with Bigsby vibratos
- Two roller types dial in the right feel for low vs. high strings
- 3-dimensional adjustment: height, intonation, and individual string spacing all independently adjustable
Features:
- Uncoated saddles milled from solid brass for excellent tone transmission
- Adjustable post spacing: 74.0–74.5mm
- Includes 2 press-in M7 bushings with M5 height-adjustment screws
- Suitable for left-handed builds (note: intonation screw angle/position is fixed, so confirm orientation works for your build)
- Made in Germany
Specifications:
- Post spacing: 2-29/32" (73.82mm)
- String spacing (E-e): 1-29/32" to 2-1/4" (48.5–57.5mm)
- Individual string spacing: 9.7–11.5mm
- String radius: 12"–14" (adjustable via roller position)
- Minimum G/D string height above body: 12.5mm
- Maximum string gauge: .052
- Weight: 58g (90g with accessories)
