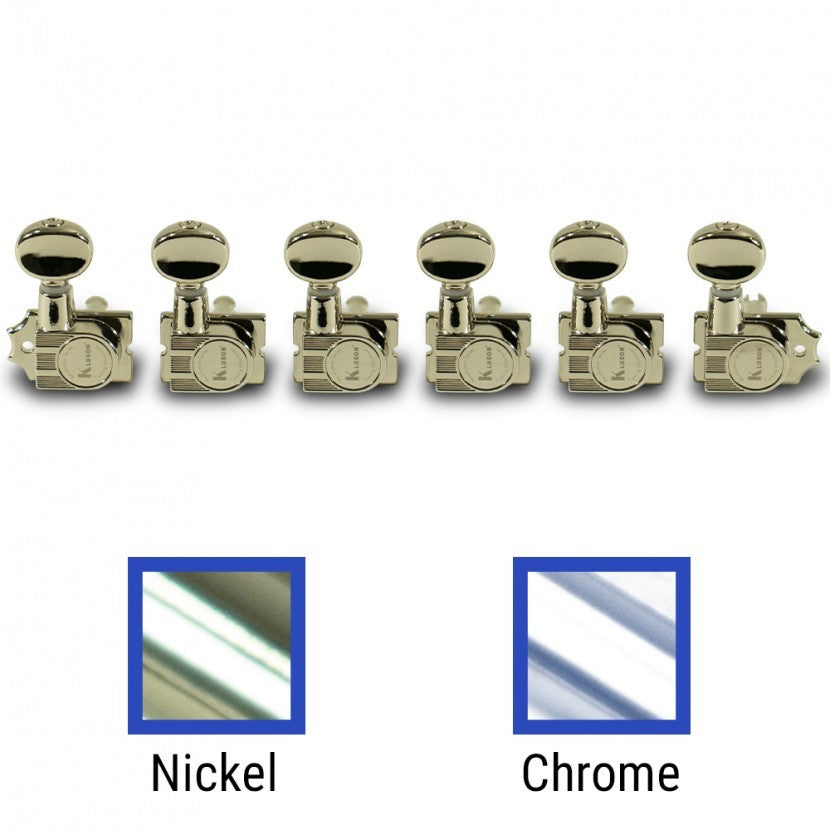

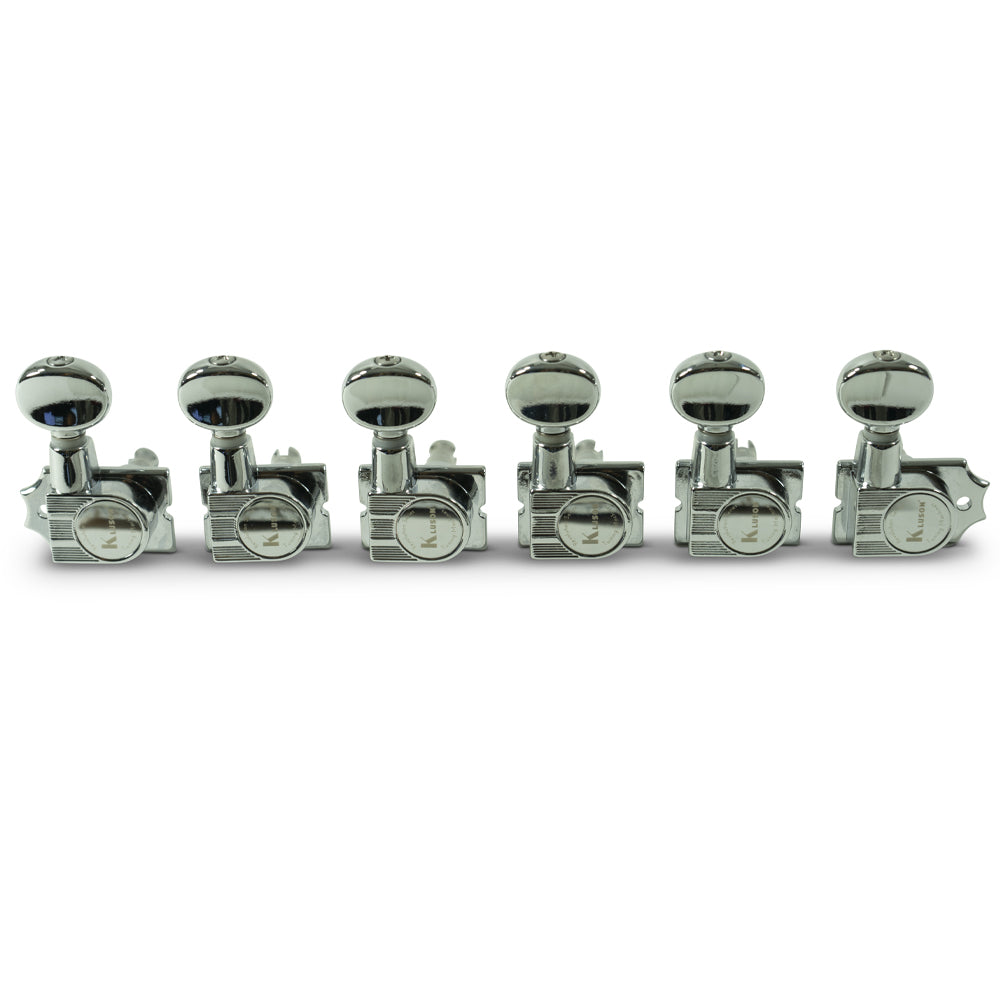

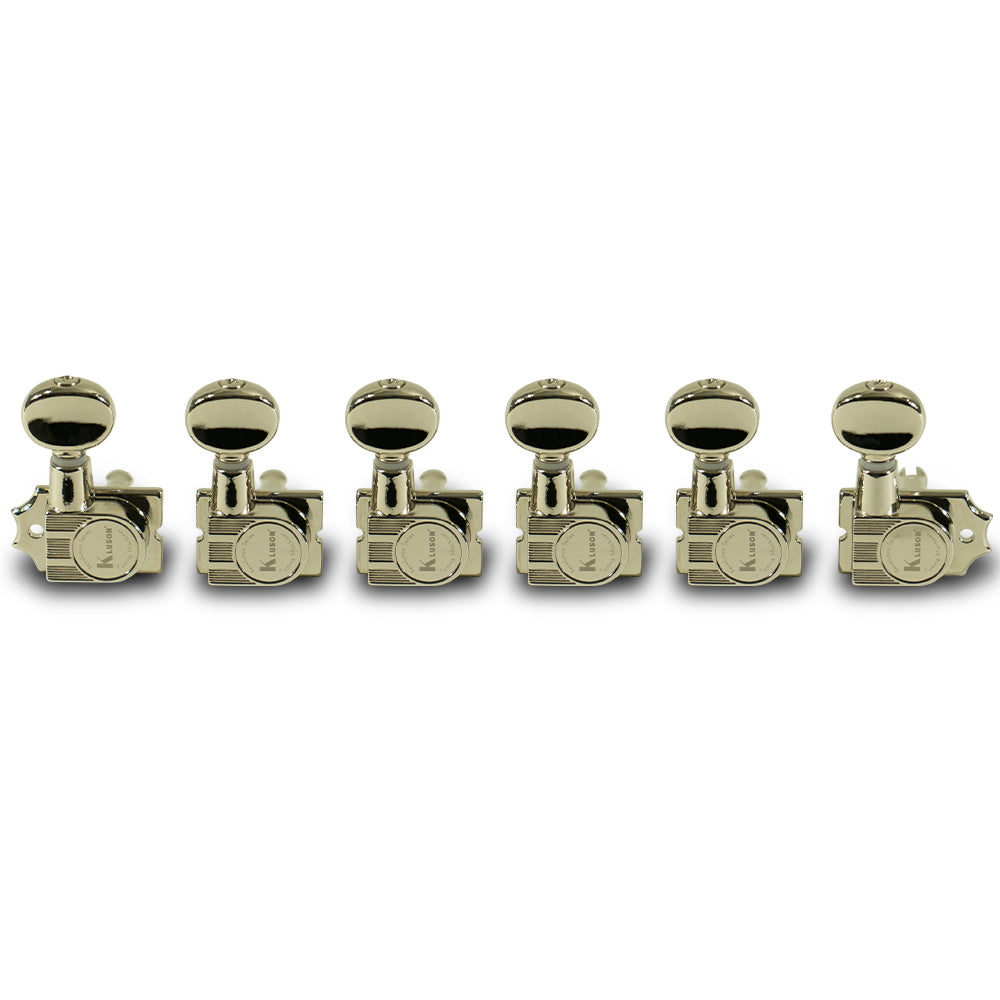

Kluson 6 In Line Revolution Series H-Mount Tuning Machines w/ Staggered Posts
Kluson's Revolution H-Mount pairs the traditional 6-in-line Kluson footprint with a modern, sealed diecast housing. Built as a direct retrofit for diecast tuners using a hex-head bushing and 25/64" peghole, it carries the 19:1 gear ratio and staggered post heights found across the Revolution line.
Key Benefits
- Direct retrofit for diecast tuners with a hex-head bushing and 25/64" peghole — no modification needed
- Staggered post heights eliminate the need for string trees, improving tuning stability, resonance, and string life
- 19:1 gear ratio for smooth, backlash-free tuning
- Sealed diecast housing keeps dust and debris out of the gearing
Features
- Screw-in hex-head bushing
- Kluson SafeTi-Post design keeps sharp string ends tucked away
- Staggered post heights: (2) 18mm, (2) 19mm, (2) 20mm
- All mounting hardware included
Specifications
- Peghole size required: 25/64" (10mm)
- Gear ratio: 19:1
- Bushing type: Screw-in hex head
- String post diameter: 1/4" (6mm)
- String post heights: (2) 18mm, (2) 19mm, (2) 20mm
Why Buy From Arkansas Musicworks
We stock genuine Kluson hardware and ship fast from our Arkansas warehouse. Not sure if your guitar takes the collared (hex-head, 25/64" peghole) or non-collared (push-in, 11/32" peghole) version? Reach out before ordering and we'll help confirm fit.
