Description

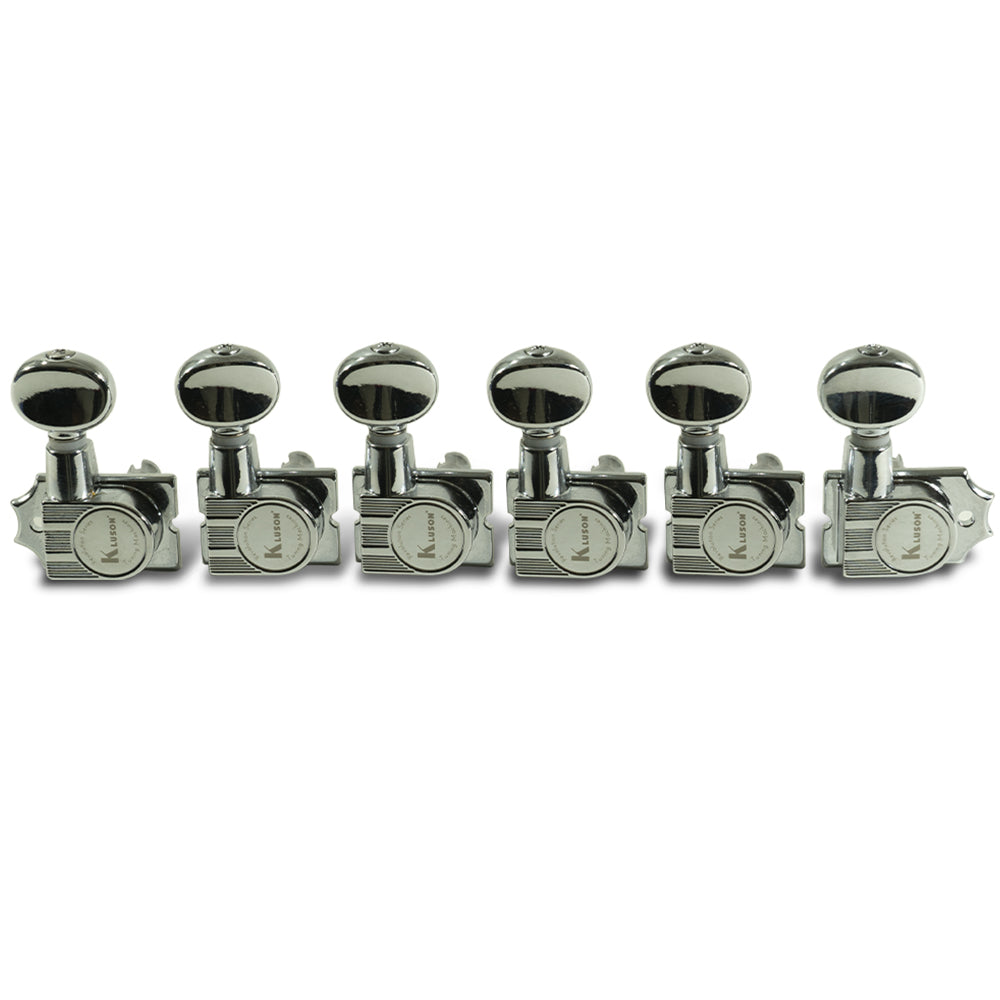

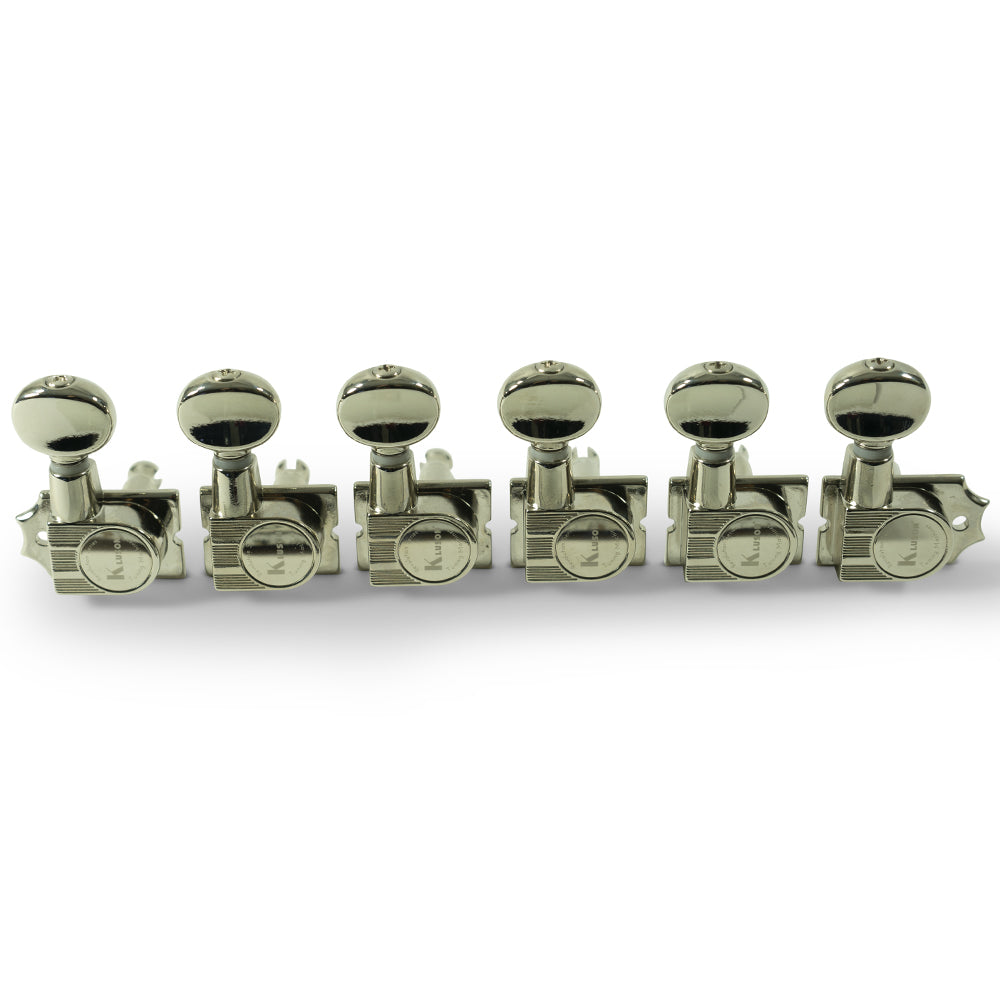

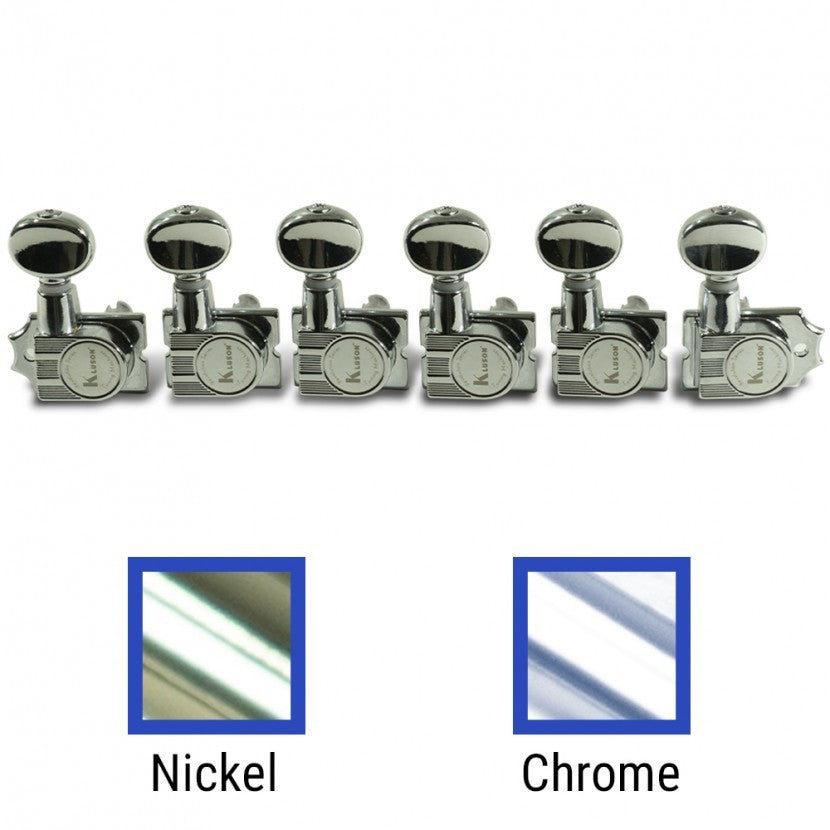

Kluson 6 In Line Revolution Series H-Mount Non-Collared Tuning Machines w/ Staggered Posts
The non-collared version of Kluson's Revolution H-Mount, built as a direct retrofit for diecast tuners using a vintage push-in bushing and 11/32" peghole rather than the hex-head style. It carries the same 19:1 gear ratio, sealed diecast housing, and staggered post heights as the rest of the Revolution H-Mount line.
Key Benefits
- Direct retrofit for diecast tuners with a vintage push-in bushing and 11/32" peghole — no modification needed
- Staggered post heights eliminate the need for string trees, improving tuning stability, resonance, and string life
- 19:1 gear ratio for smooth, backlash-free tuning
- Sealed diecast housing keeps dust and debris out of the gearing
Features
- Push-in bushing, 11/32" peghole
- Kluson SafeTi-Post design keeps sharp string ends tucked away
- Staggered post heights: (2) 18mm, (2) 19mm, (2) 20mm
- All mounting hardware included
Specifications
- Gear ratio: 19:1
- Gear type: Steel worm and brass ring
- Bushing type: Push-in
- Bushing depth: 5/16" (7.5mm)
- Bushing O.D.: 11/32" (8.8mm) / I.D.: 1/4" (6.5mm)
- String post diameter: 1/4" (6mm), steel
- Mount pattern: Vintage 6-in-line Kluson
Why Buy From Arkansas Musicworks
We stock genuine Kluson hardware and ship fast from our Arkansas warehouse. Not sure if your guitar takes the collared or non-collared version? Reach out before ordering and we'll help confirm fit.
