Description

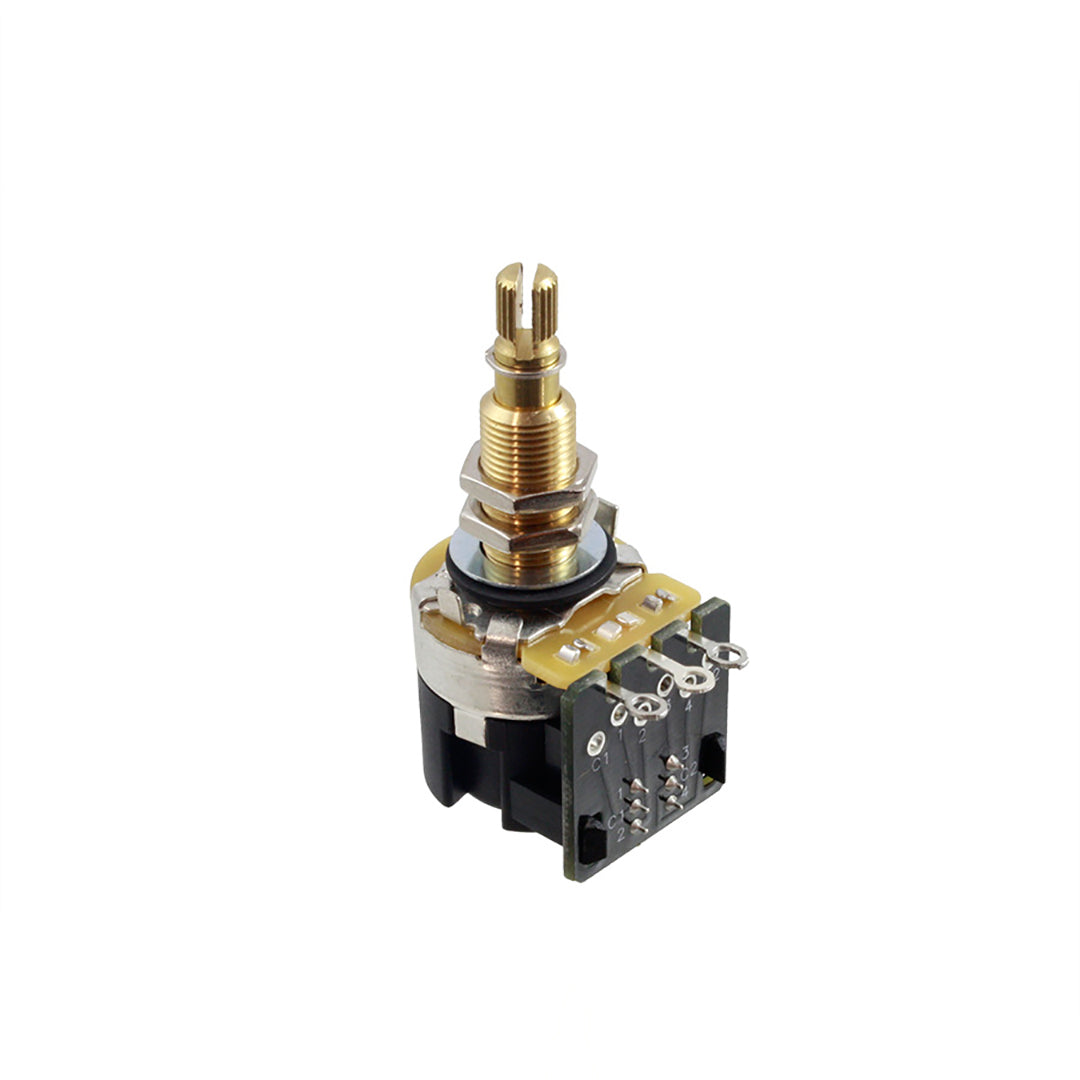

A genuine CTS DPDT push/pull potentiometer built with an extended 3/4" threaded bushing — nearly double the length of a standard CTS pot's 3/8" thread. That extra length is essential on carved-top guitars like a Les Paul, where the top's thickness means a standard-length pot won't reach through to seat properly against the surface. It combines that long-shaft design with a built-in push/pull switch and a tighter 10% tolerance for more consistent performance than CTS's standard pots.
Benefits:
- Extended 3/4" threaded bushing reaches through thick carved tops where standard pots fall short
- Tighter 10% tolerance for more consistent performance than standard CTS pots
- Adds a switching function to an existing knob — no extra holes or panel space needed
Features:
- 500K ohm resistance, ±10% tolerance, audio taper
- DPDT push/pull switch
- 3/4" long threaded bushing
- Split, knurled shaft (24 spline), 6mm diameter
- Includes mounting nut, lock washer, and dress washer
Specifications:
- Requires minimum 1" cavity depth to mount
