Description

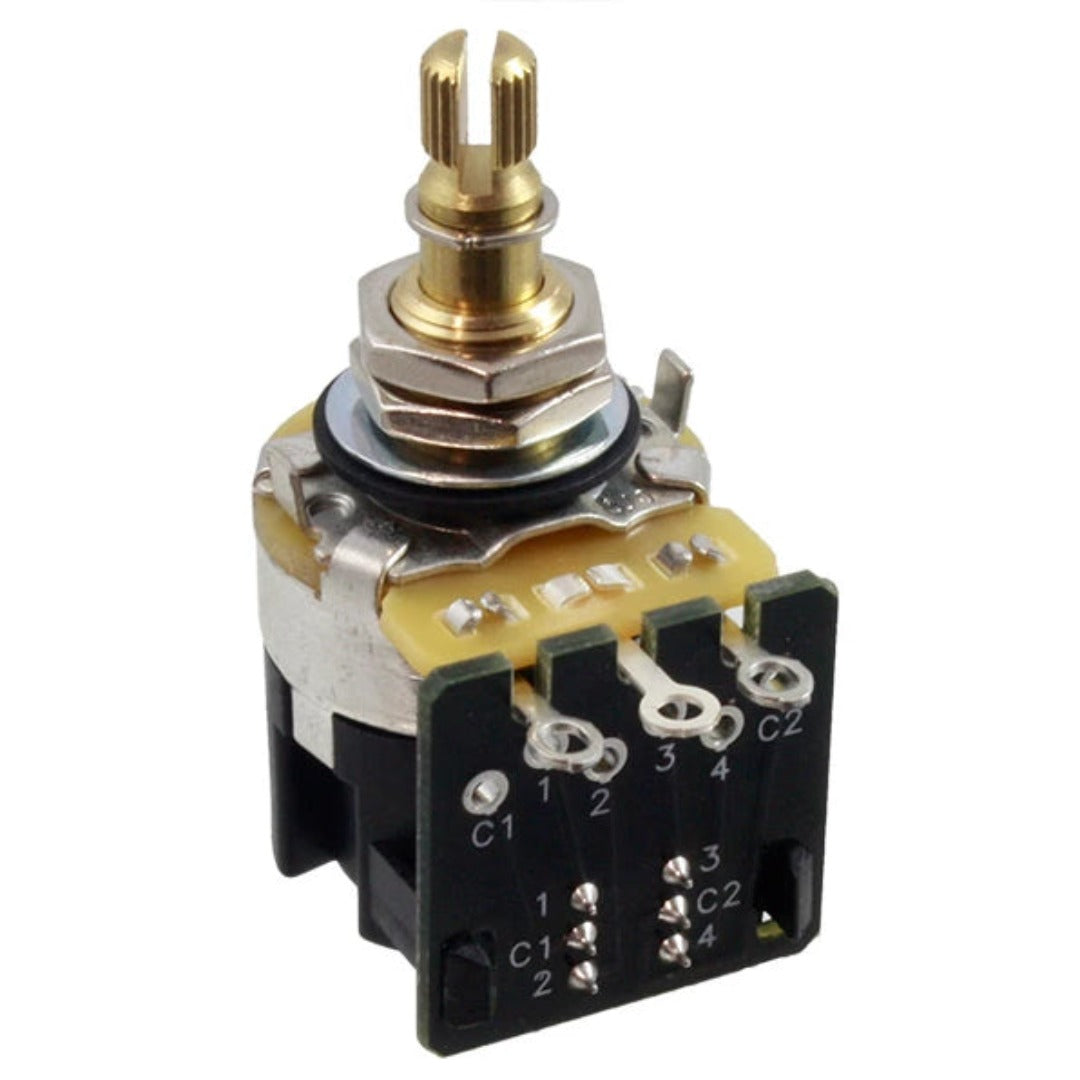

A genuine CTS DPDT push/pull potentiometer with a tighter 10% tolerance than CTS's standard pots (typically ±20%), for more consistent, predictable performance. Pull the knob up to engage the built-in switch, adding a second function to your existing control — the classic hardware behind coil-splitting a humbucker, phase reversal, or series/parallel switching, all without drilling for a separate mini toggle. The 500K value is the standard choice for humbucker-equipped guitars, preserving more top-end brightness than a 250K pot.
Benefits:
- Tighter 10% tolerance for more consistent performance than standard CTS pots
- 500K resistance keeps humbucker tone bright and open
- Adds a switching function to an existing knob — no extra holes or panel space needed
Features:
- 500K ohm resistance, ±10% tolerance, audio taper
- DPDT push/pull switch
- Split, knurled shaft (24 spline), 6mm diameter
- Includes mounting nut, lock washer, and dress washer
Specifications:
- Threaded bushing: 3/8" long, 3/8" diameter
- Requires minimum 1" cavity depth to mount
Why Buy From Arkansas Musicworks
We stock genuine CTS potentiometers sourced directly through authorized distribution, backed by our team's own wiring expertise if you have questions.
