Description

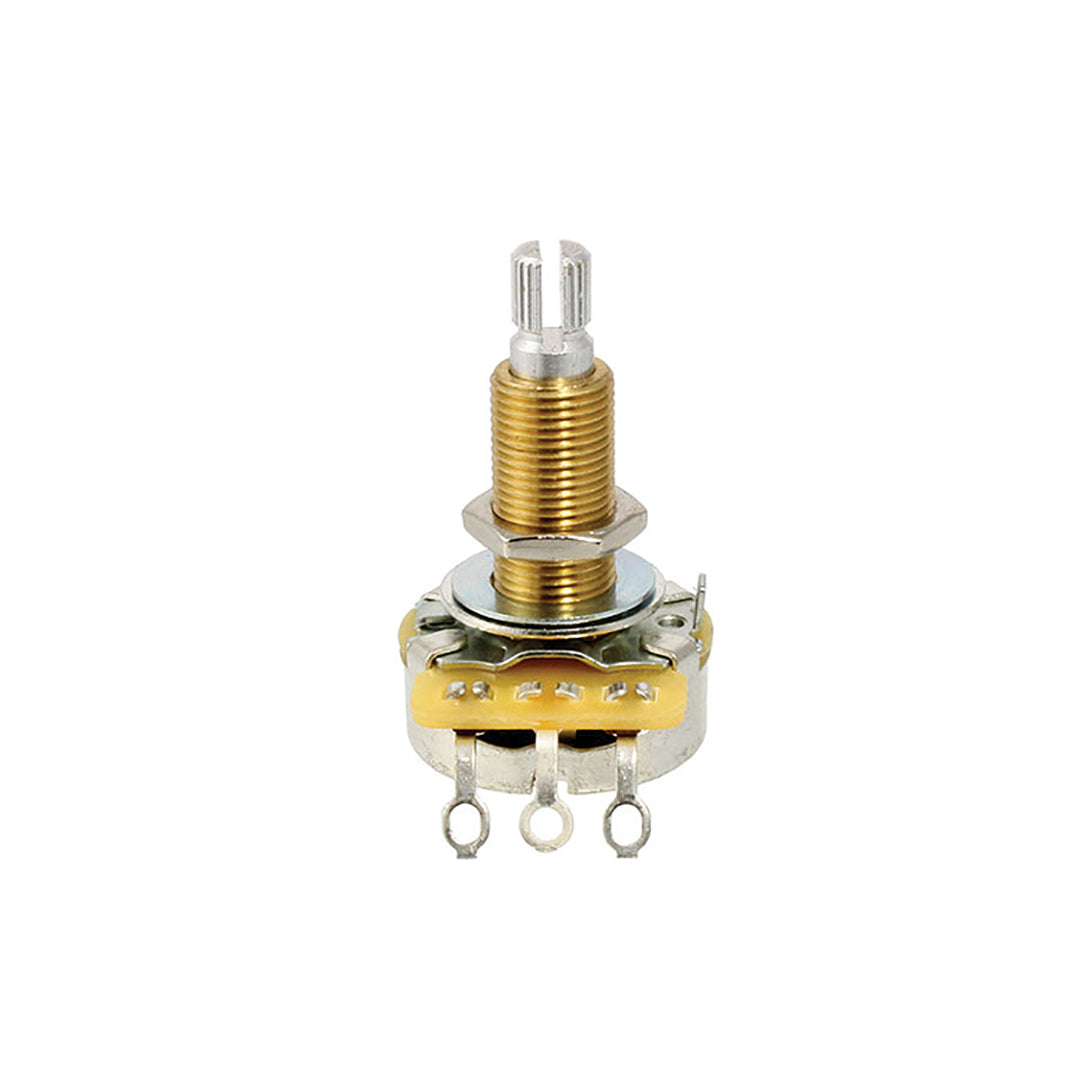

A genuine CTS 300K linear taper potentiometer built with an extended 3/4" threaded bushing — nearly double the length of a standard CTS pot's 3/8" thread. That extra length is essential on carved-top guitars like a Les Paul, where the top's thickness means a standard-length pot won't reach through to seat properly against the surface. The linear taper is typically reserved for tone control applications, giving a smooth, even sweep rather than the perceptually-matched curve of an audio taper.
Benefits:
- Industry-standard CTS quality trusted by major guitar manufacturers
- Extended 3/4" threaded bushing reaches through thick carved tops where standard pots fall short
- Even, predictable linear response, well-suited to tone control duty
Features:
- 300K ohm resistance, ±20% tolerance, linear taper
- 3/4" long threaded bushing, brass
- Split, knurled shaft (fine spline, 24 tooth), aluminum, 3/8" long
- Includes mounting nut and dress washer
Specifications:
- Body diameter: 24mm
Why Buy From Arkansas Musicworks
We stock genuine CTS potentiometers sourced directly through authorized distribution, backed by our team's own wiring expertise if you have questions.
