Description

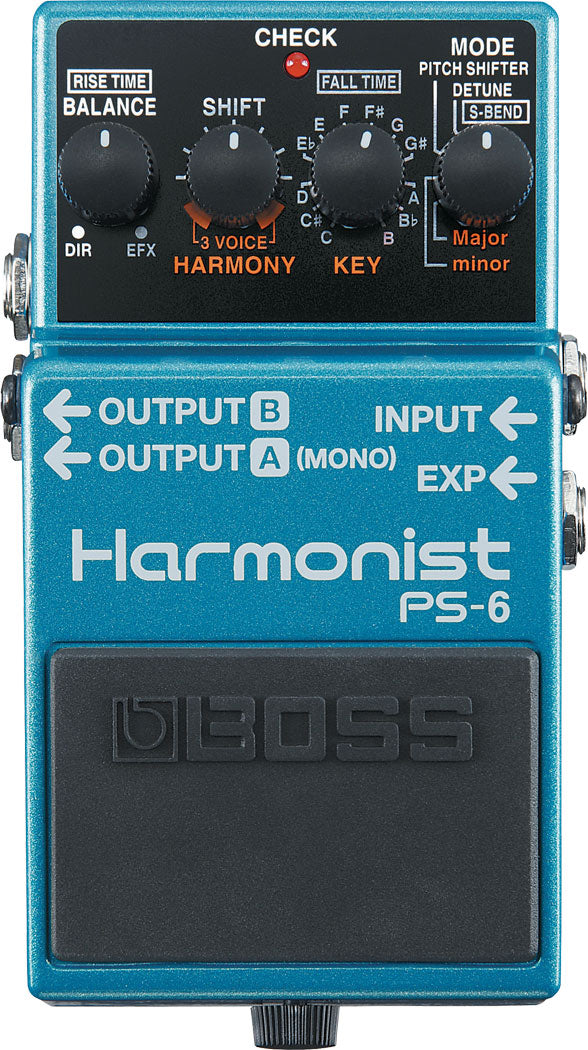

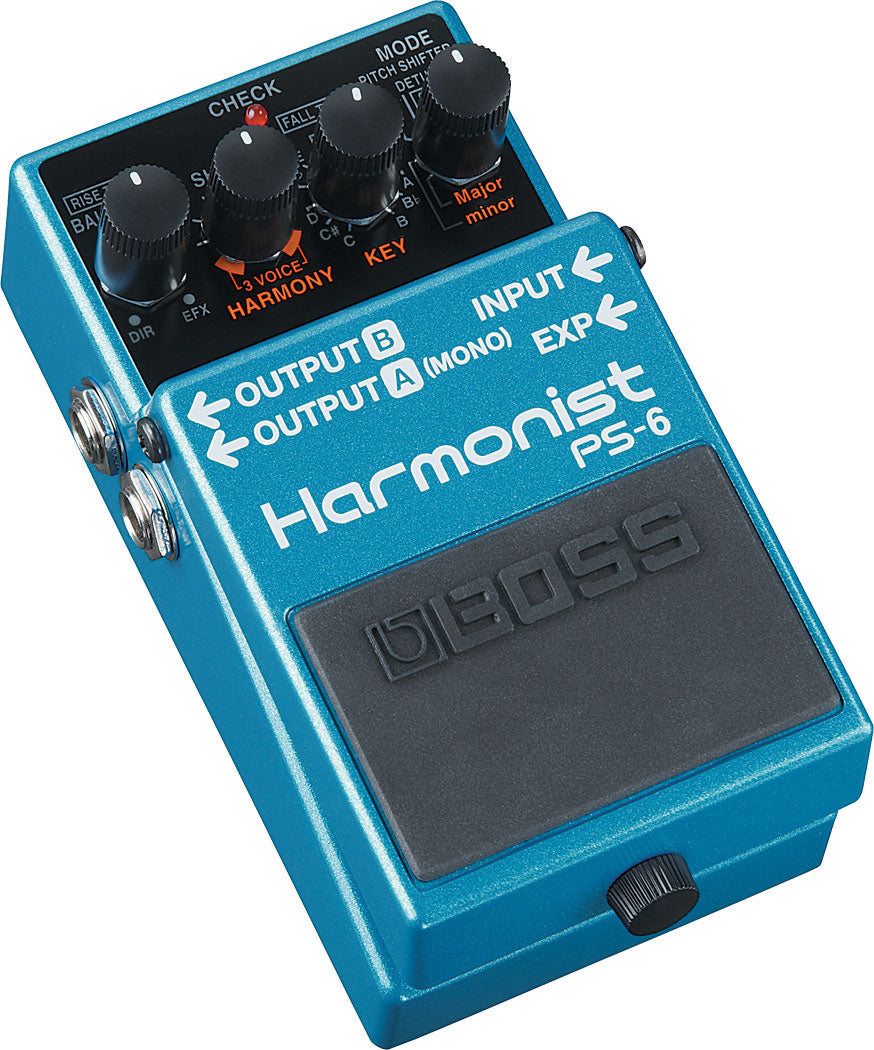

BOSS PS-6 Harmonist
The BOSS PS-6 Harmonist combines four intelligent pitch-shift effects and three-voice harmony in a single compact unit. With modes including Harmony, Pitch Shifter, Detune, and the all-new Super Bend, this pedal delivers authentic pitch-bending effects, sweeping three- and four-octave dives, and lush harmonies. Fast and simple to use, the PS-6 is an unbeatable combination of superior sound quality, ease of use, and creative power.
Features
- Four effect modes: Harmony, Pitch Shifter, Detune, and Super Bend
- Create three-voice harmonies with selectable major or minor keys
- Super Bend mode for dramatic pedal-bending effects and octave sweeps
- Optional expression pedal for real-time pitch control
- Fast and intuitive operation for live performance
- Compact design with high-quality BOSS pitch processing
Specifications
- Nominal Input Level: -20 dBu
- Input Impedance: 1 M ohm
- Nominal Output Level: -20 dBu
- Output Impedance: 1 k ohm
- Recommended Load Impedance: 10 k ohms or greater
- Bypass: Buffered bypass
Controls
- MODE knob
- KEY/FALL TIME knob
- SHIFT knob
- BALANCE/RISE TIME knob
- Pedal switch
Indicator
- CHECK indicator (also functions as battery check)
Connectors
- INPUT jack: 1/4-inch phone type
- OUTPUT jack A (MONO) / B: 1/4-inch phone type
- EXP jack: 1/4-inch TRS phone type
- DC IN jack
Power Supply
- Alkaline battery (9 V, 6LR61)
- AC adaptor (PSA series, sold separately)
Current Draw
- 65 mA
Expected Battery Life (Continuous Use)
- Alkaline: Approx. 3 hours
- *Actual life varies depending on usage conditions
Accessories
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
- Alkaline battery (9 V, 6LR61)
Options (Sold Separately)
- AC adaptor: PSA series
- Expression pedal: Roland EV-5, BOSS EV-30, FV-500H, FV-500L
Size & Weight
- Width: 73 mm / 2-7/8 inches
- Depth: 129 mm / 5-1/8 inches
- Height: 59 mm / 2-3/8 inches
- Weight (including battery): 420 g / 15 oz
