Description

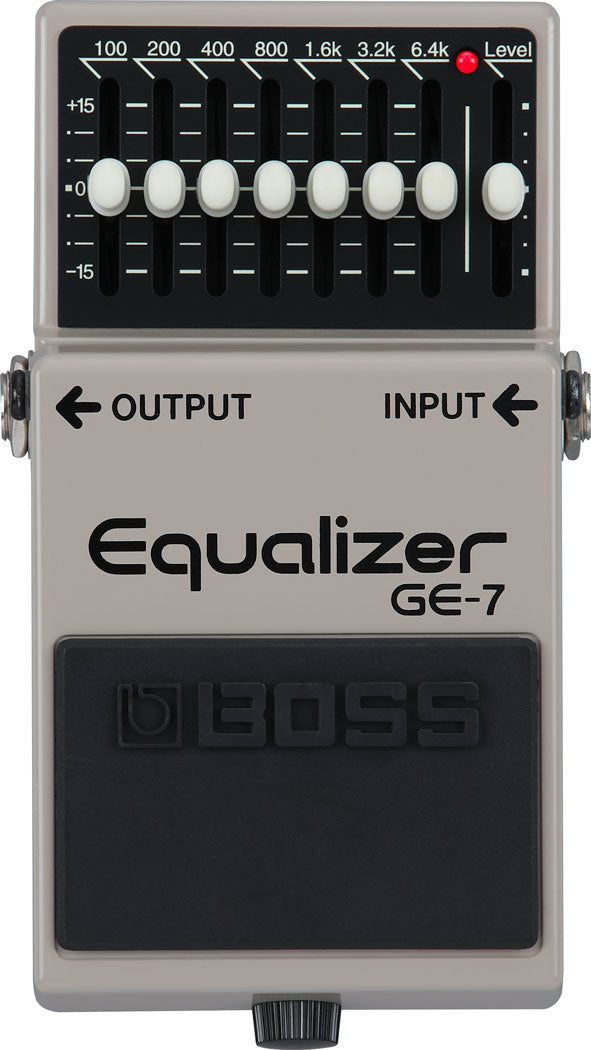

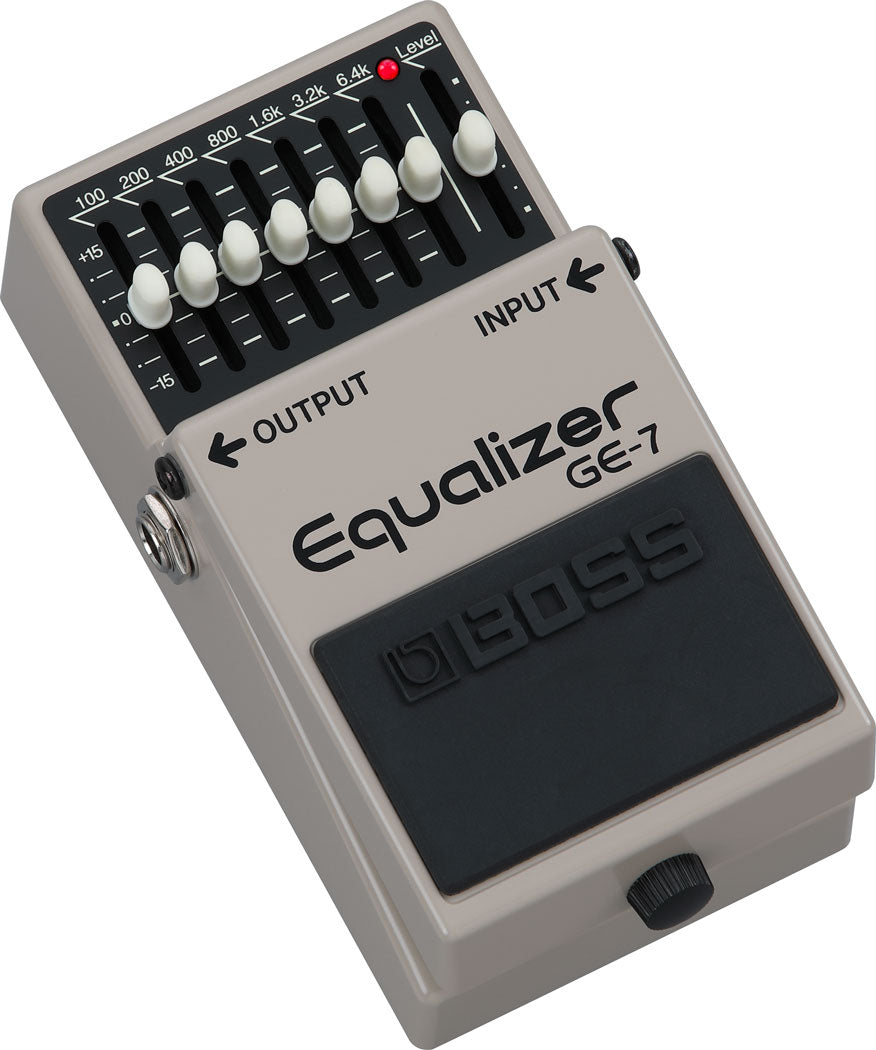

BOSS GE-7 Equalizer Pedal
The BOSS GE-7 is a classic graphic equalizer pedal designed for precise tone shaping. With seven adjustable bands tailored for guitar frequencies and a powerful level control, the GE-7 is an essential utility tool for enhancing your sound, reducing feedback, or boosting your tone on stage and in the studio.
Features
- Compact graphic equalizer pedal with seven independently adjustable bands
- Guitar-optimized frequencies: 100 Hz, 200 Hz, 400 Hz, 800 Hz, 1.6 kHz, 3.2 kHz, and 6.4 kHz
- ±15 dB boost/cut per band for maximum tonal flexibility
- Level slider for overall signal balance or volume boost
- Perfect for refining guitar tone, tackling feedback, and shaping problem frequencies
- BOSS five-year warranty
Specifications
- Nominal Input Level: -20 dBu
- Input Impedance: 1 M ohm
- Nominal Output Level: -20 dBu
- Output Impedance: 1 k ohm
- Recommended Load Impedance: 10 k ohm or greater
- Bypass: Buffered bypass
Controls
- Level control slider
- Equalizer sliders (100 Hz, 200 Hz, 400 Hz, 800 Hz, 1.6 kHz, 3.2 kHz, 6.4 kHz)
- Pedal switch
Connectors
- INPUT jack: 1/4-inch phone type
- OUTPUT jack: 1/4-inch phone type
- DC IN jack
Power Supply
- Carbon-zinc battery (9V, 6F22) or Alkaline battery (9V, 6LR61)
- AC adaptor (PSA series, sold separately)
Current Draw
- 30 mA
Expected Battery Life (Continuous Use)
- Carbon: Approx. 9 hours
- Alkaline: Approx. 19.5 hours
- *Actual life varies with conditions of use
Accessories
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
- Carbon-zinc battery (9V, 6F22)
Options (Sold Separately)
- AC adaptor: PSA series
Size & Weight
- Width: 73 mm / 2-7/8 inches
- Depth: 129 mm / 5-1/8 inches
- Height: 59 mm / 2-3/8 inches
- Weight (including battery): 400 g / 15 oz
