Description

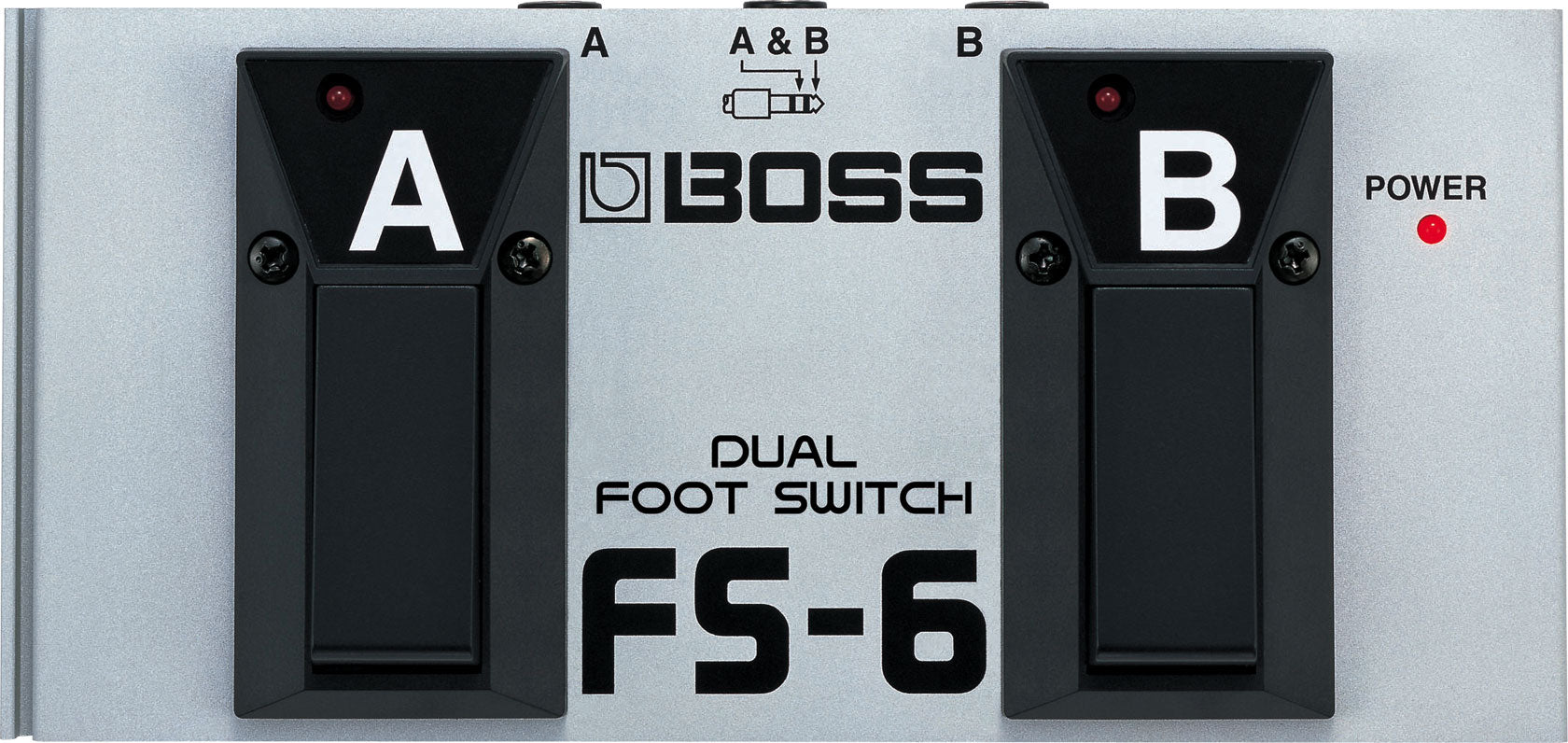

BOSS FS-6 Dual Footswitch
The FS-6 combines latch- and momentary-type switching into one compact unit, giving you two versatile footswitches side by side. Each switch can be independently assigned for latch or momentary operation, so you can customize it to fit your setup. With stereo or dual mono connectivity, the FS-6 integrates seamlessly with a wide variety of instruments, rhythm machines, guitar amps, and other electronic devices.
Features
- Two footswitches housed side by side
- Each switch selectable for latch- or momentary-type operation
- Stereo input jack for connection via a single stereo cable
- Can be linked with other footswitches (FS-5L/FS-5U/FS-6/AB-2) for extended control
- Compatible with a wide variety of instruments, rhythm machines, amps, and electronic devices
Controls
- Pedal Switch A, B
- Polarity Switch A, B
- Mode Switch A, B
Connectors
- Jack A (1/4-inch phone type)
- Jack B (1/4-inch phone type)
- Jack A & B (TRS 1/4-inch phone type)
Power Supply
- DC 9V: Dry battery (9V, 6F22 carbon or 6LR61 alkaline)
Current Draw
- 8 mA (max.)
Accessories
- Dry battery (9V, 6F22)
- Owner's Manual
Size & Weight
- Width: 188 mm / 7-7/16 inches
- Depth: 91 mm / 3-5/8 inches
- Height: 43 mm / 1-3/4 inches
- Weight (including battery): 470 g / 1 lb 1 oz
