Description

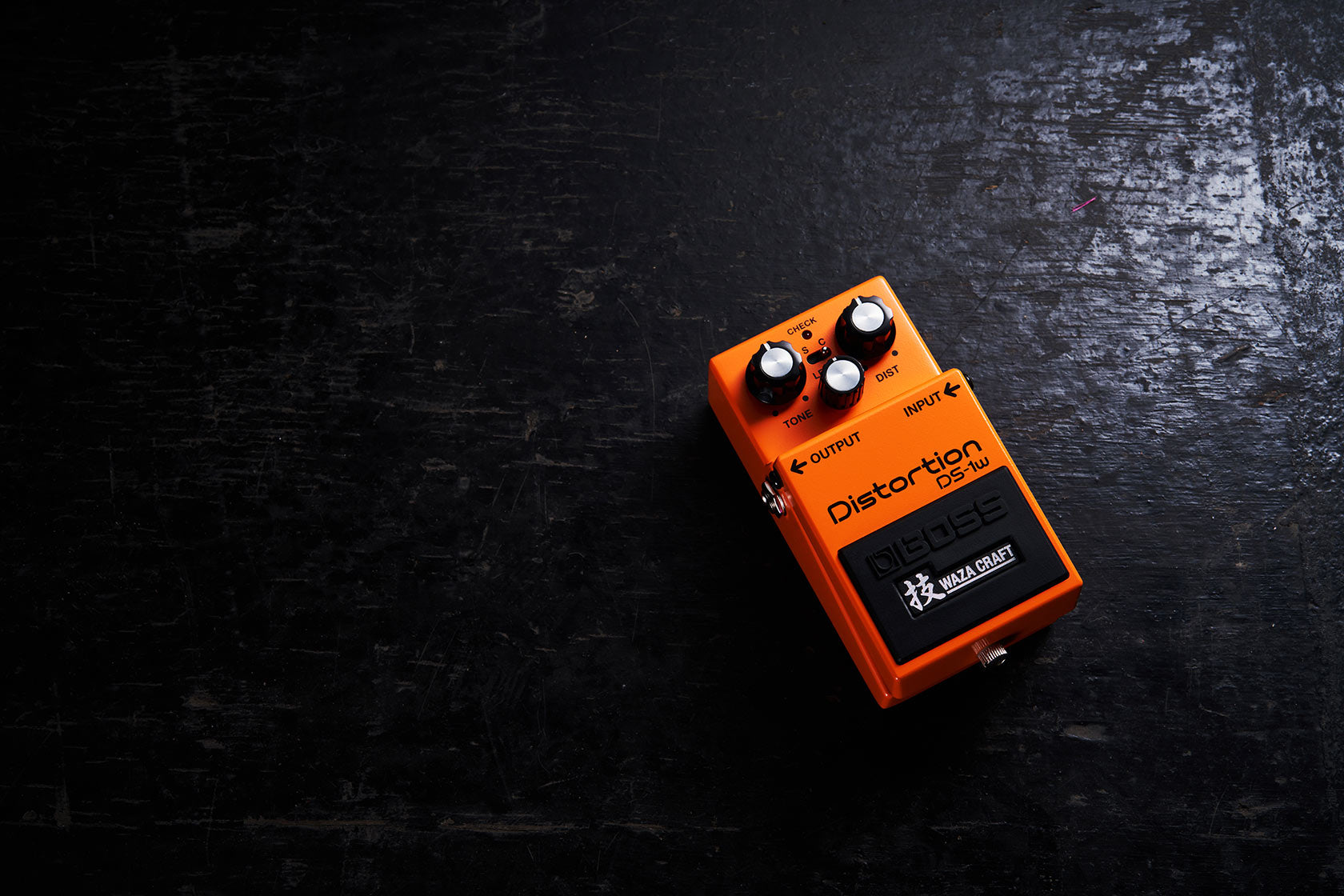

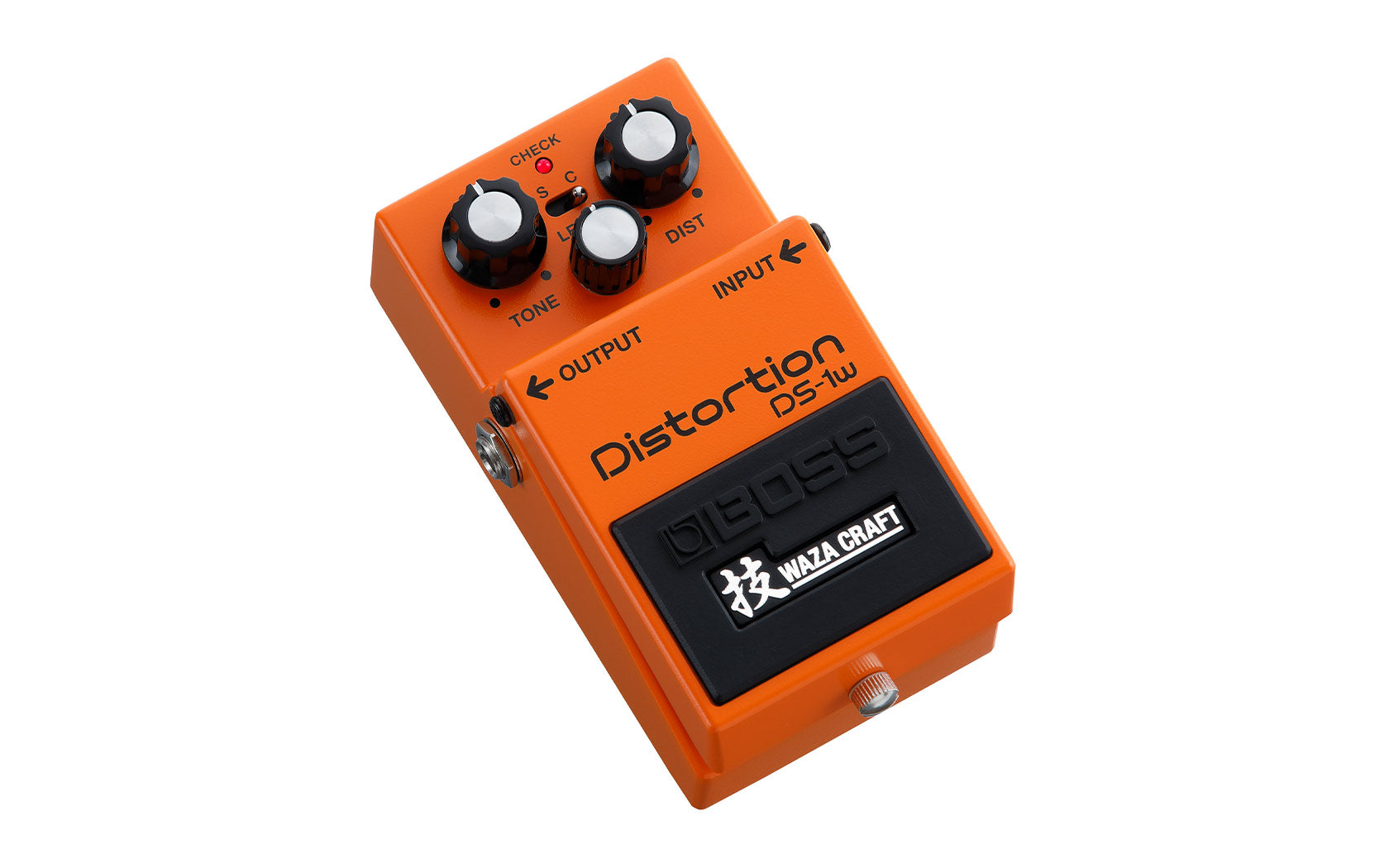

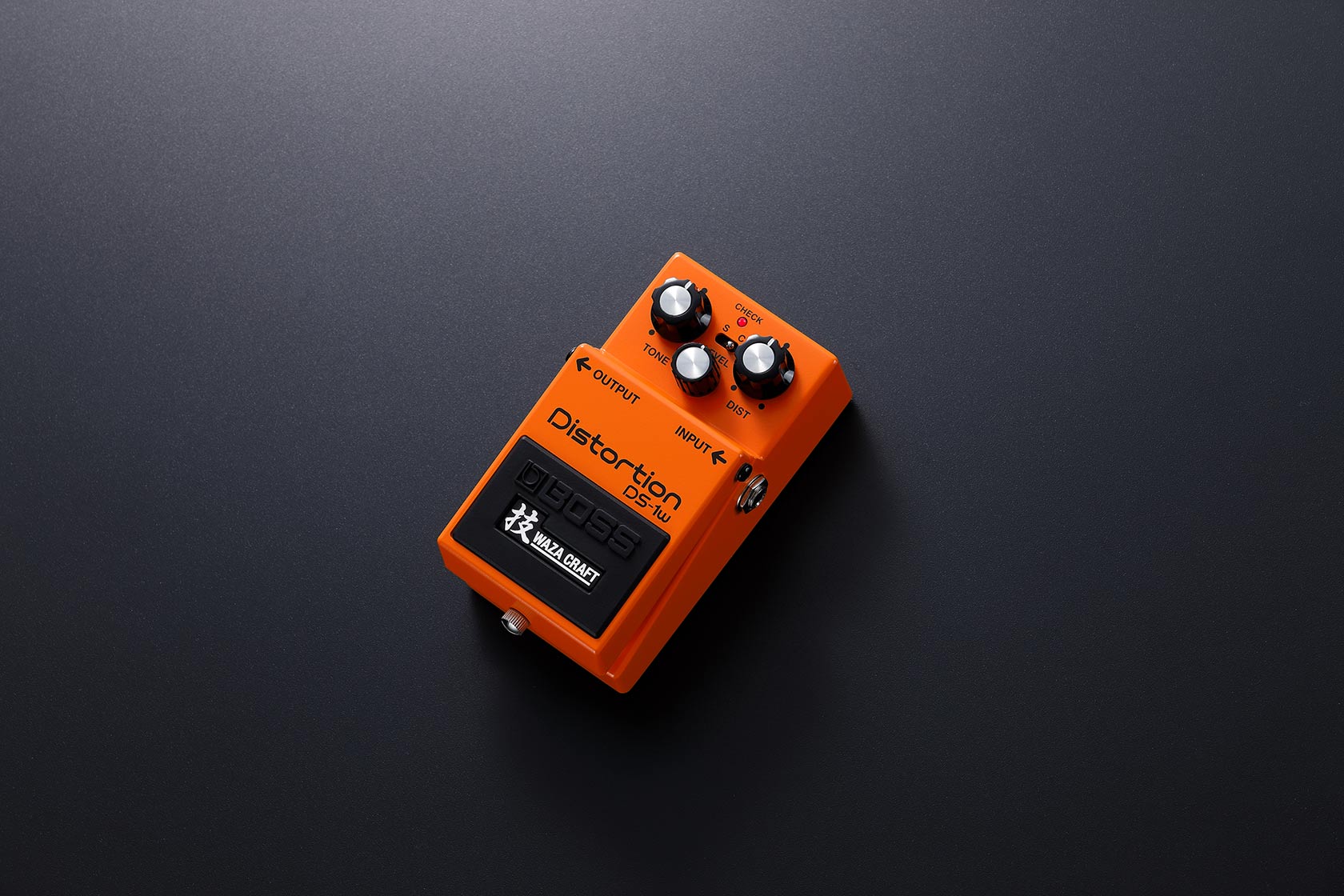

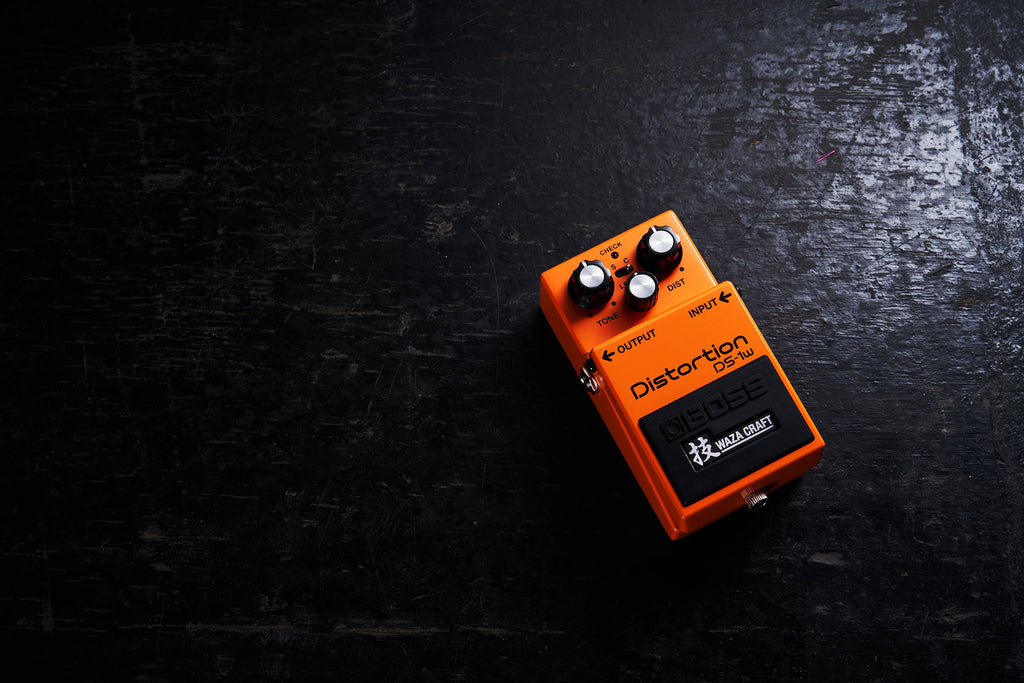

BOSS DS-1W Waza Craft Distortion
Introduced in 1978, the orange DS-1 defined the sound of distortion and remains one of the most influential pedals ever made. With the DS-1W, this iconic stompbox joins the Waza Craft series, combining its classic character with a newly revised discrete all-analog circuit for expanded range and versatility. Offering both Standard and Custom modes, the DS-1W delivers everything from legendary biting distortion to fatter, more expressive tones with focused mids and dynamic touch response.
Features
- Special edition Waza Craft pedal for the ultimate BOSS tone experience
- Newly revised two-stage gain circuit with discrete analog components
- Standard mode reproduces the legendary sound of the original DS-1
- Custom mode delivers fatter distortion with enhanced mids and dynamics
- Tone knob provides wide-ranging frequency control tailored to each mode
- Functions well as a standalone distortion or as a gain booster
- Premium buffer ensures clear tone when bypassed
- Made in Japan with BOSS five-year warranty
Specifications
- Nominal Input Level: -20 dBu
- Input Impedance: 1 M ohm
- Nominal Output Level: -20 dBu
- Output Impedance: 1 k ohm
- Recommended Load Impedance: 10 k ohms or greater
- Bypass: Buffered bypass

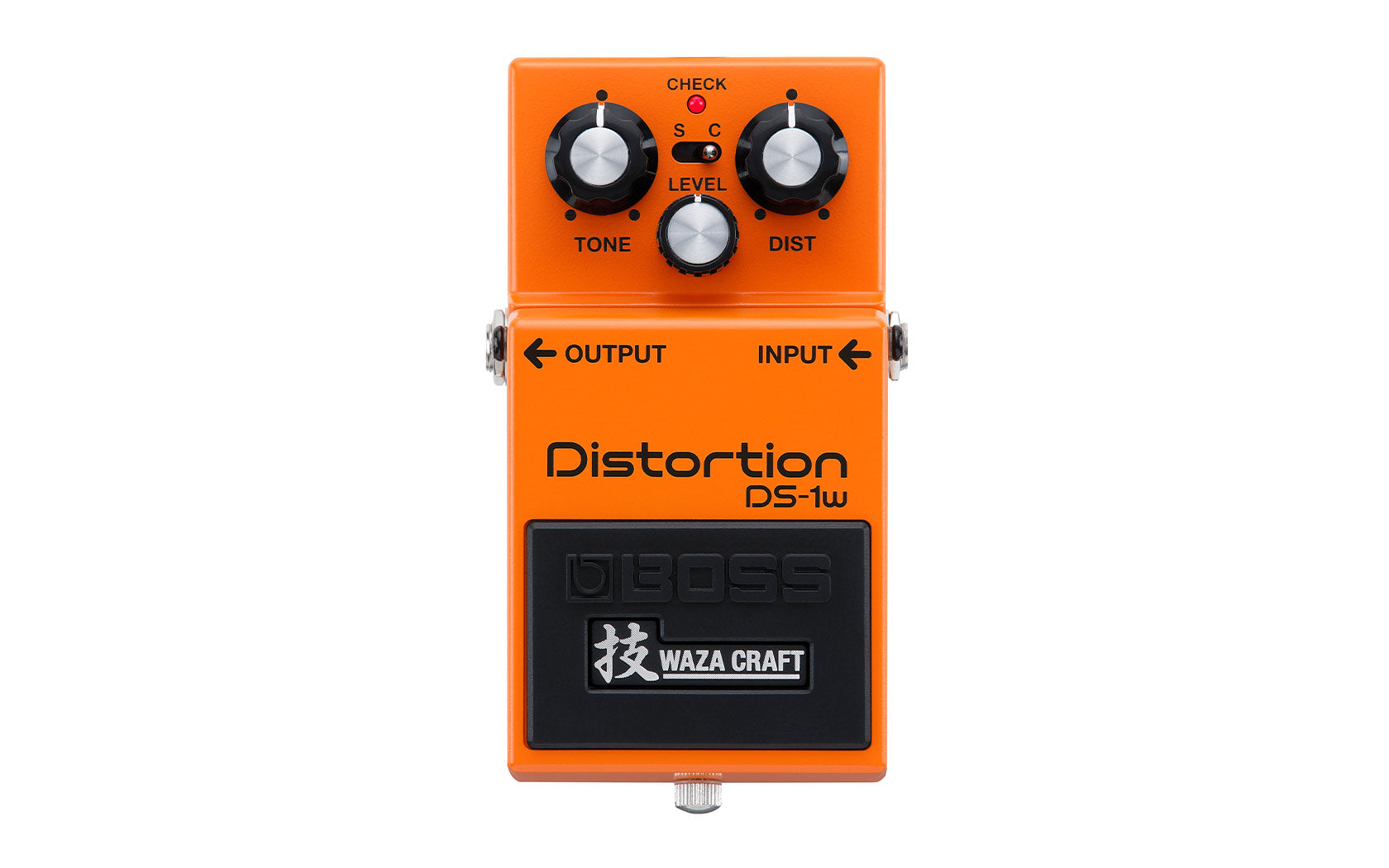

Controls
- Pedal switch
- Mode switch
- DIST knob
- TONE knob
- LEVEL knob
Indicator
- CHECK indicator (also serves as battery check indicator)

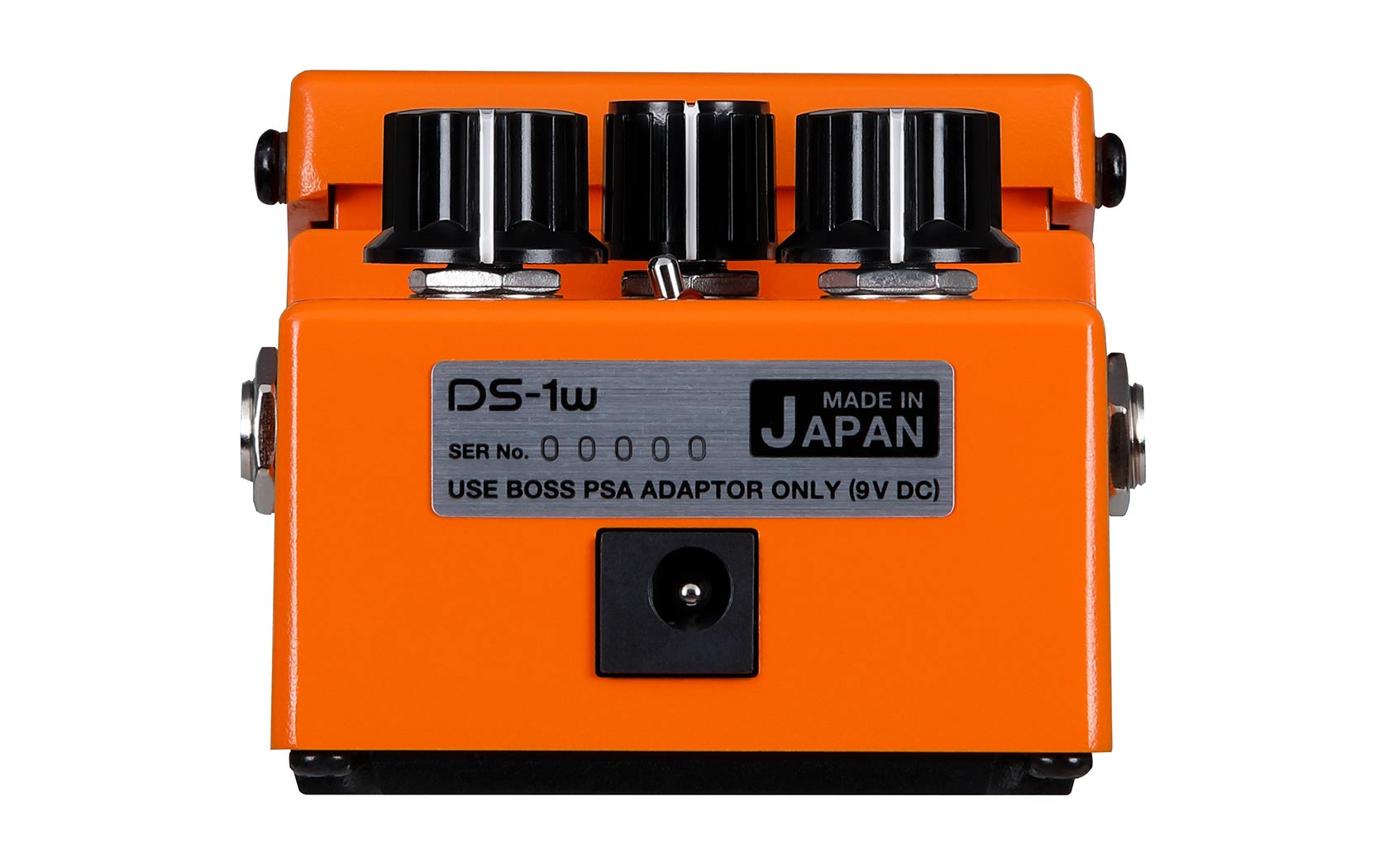

Connectors
- INPUT jack: 1/4-inch phone type
- OUTPUT jack: 1/4-inch phone type
- DC IN jack
Power Supply
- Alkaline battery (9V, 6LR61 or 6LF22)
- Carbon-zinc battery (9V, 6F22)
- AC adaptor (PSA series, sold separately)
Current Draw
- 15 mA
Expected Battery Life
- Alkaline: Approx. 50 hours
- Carbon: Approx. 25 hours
- (Varies with conditions of use)
Accessories
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
- Alkaline battery (9V, 6LR61 or 6LF22)
Options (sold separately)
- AC adaptor: PSA series
Size & Weight (including battery)
- Width: 73 mm / 2-7/8 inches
- Depth: 129 mm / 5-1/8 inches
- Height: 59 mm / 2-3/8 inches
- Weight: 430 g / 1 lb
