Description

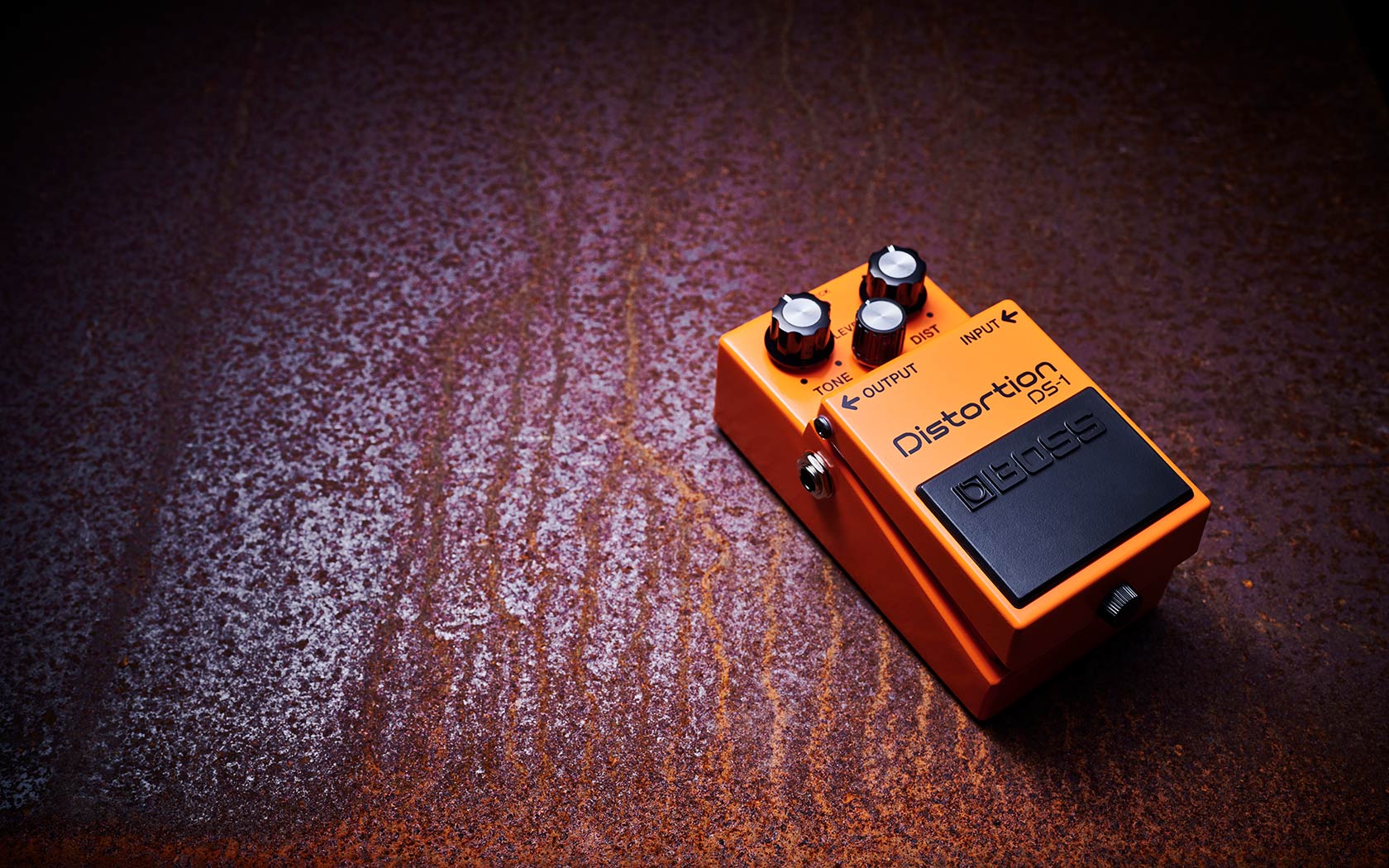

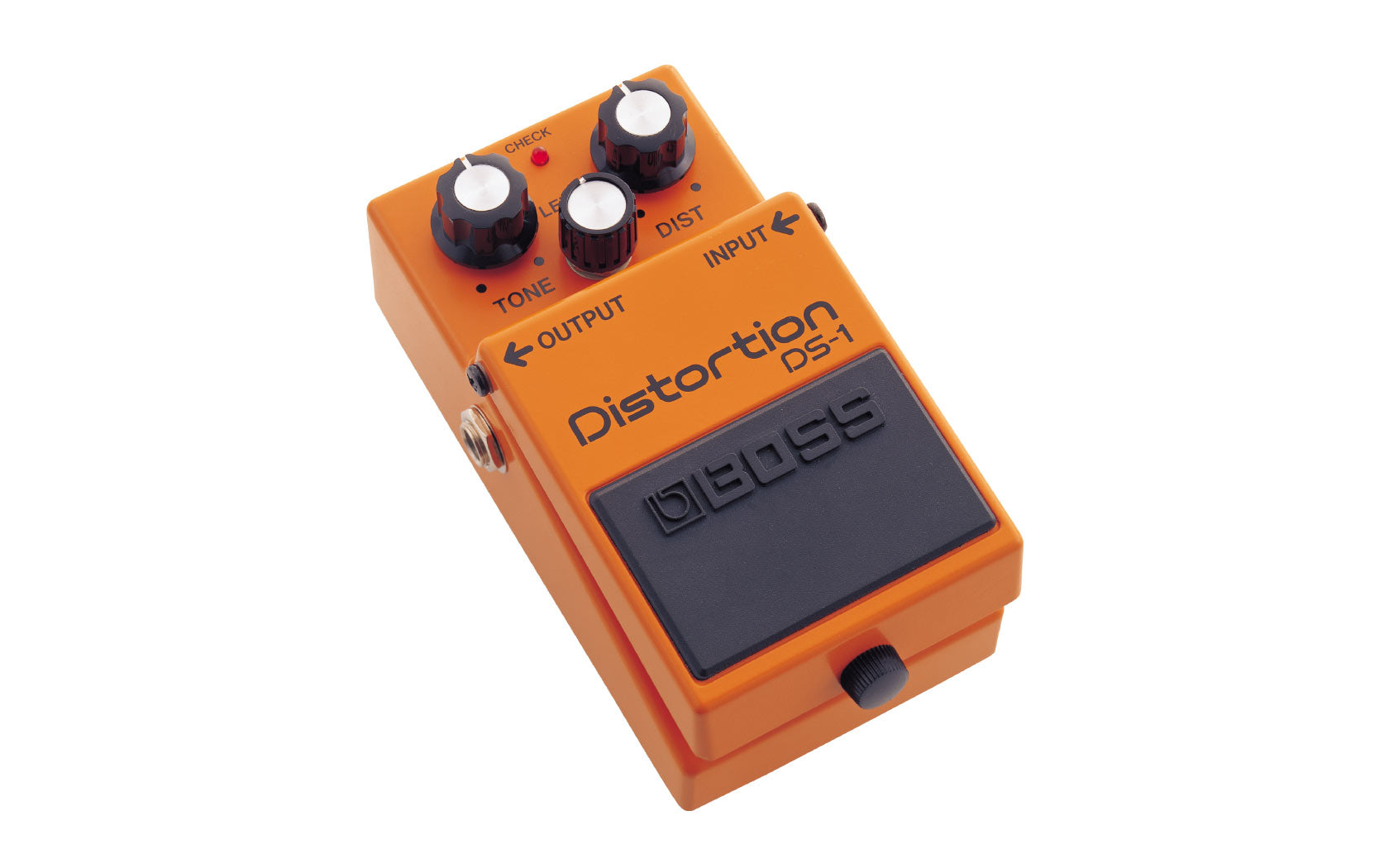

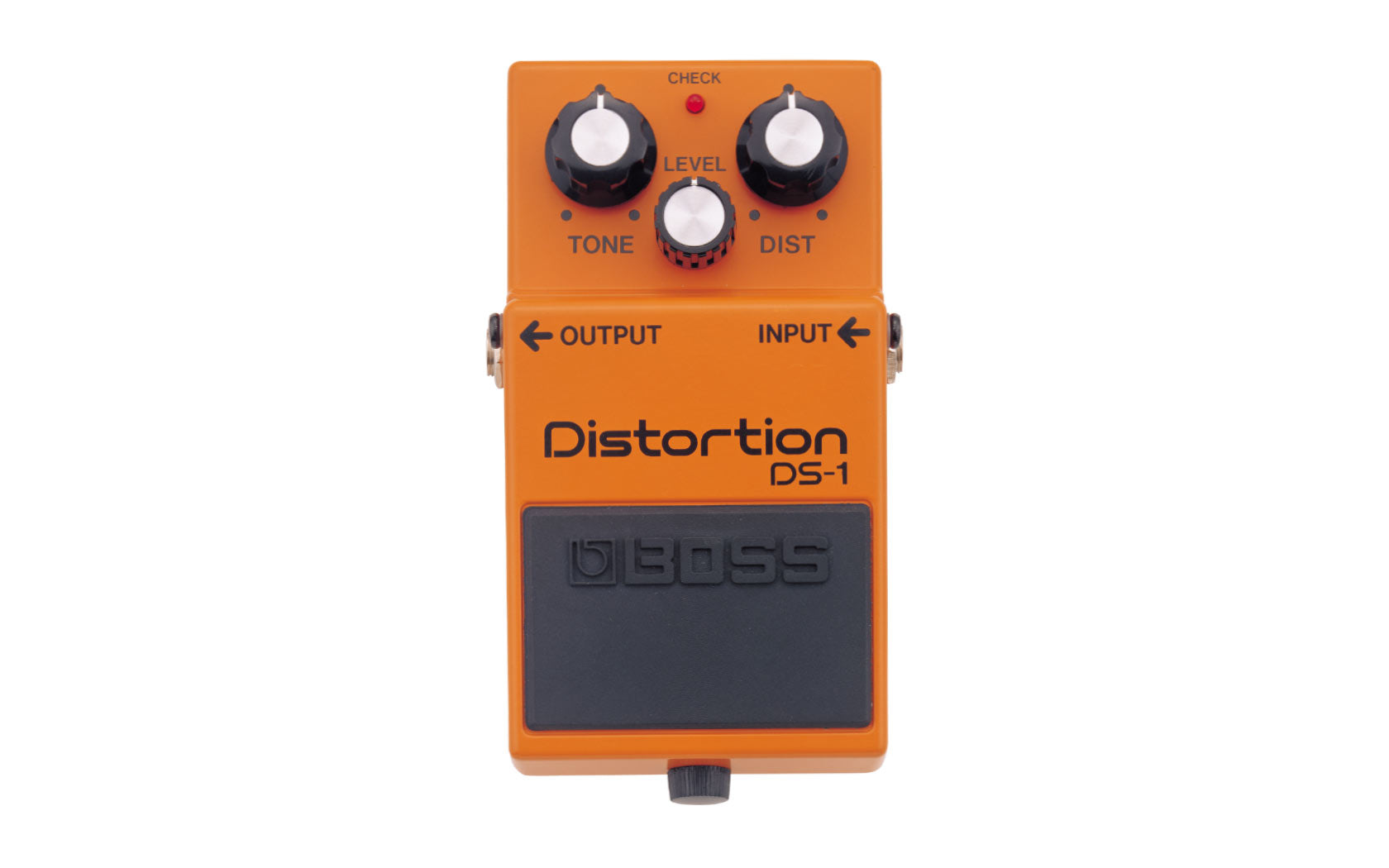

BOSS DS-1 Distortion
Since its introduction in 1978, the DS-1 has become one of the most iconic and best-selling distortion pedals of all time. Its bold, hard-edged attack and smooth sustain defined a new era of guitar tone, powering generations of rock legends and countless other styles. Still produced in its original design, the DS-1 delivers classic distortion that remains a staple on pedalboards worldwide.
Features
- Legendary BOSS distortion used by guitarists since 1978
- Classic tones suitable for all styles of music
- Hard-edged attack stays clear even at maximum distortion settings
- Ideal for heavy rhythms, cutting solos, or boosting amps
- Unique tone control offers a wide range of sound shaping
- Maintains the unique character of different guitars and pickups
- Responsive to guitar volume adjustments for tonal cleanup
- BOSS five-year warranty
Specifications
- Nominal Input Level: -20 dBu
- Input Impedance: 1 M ohm
- Nominal Output Level: -20 dBu
- Output Impedance: 1 k ohm
- Recommended Load Impedance: 10 k ohms or greater
Controls
- TONE knob
- LEVEL knob
- DIST knob
- Pedal switch
Indicator
- CHECK indicator (also serves as battery check)
Connectors
- INPUT jack: 1/4-inch phone type
- OUTPUT jack: 1/4-inch phone type
- DC IN jack
Power Supply
- Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22)
- AC adaptor (PSA series: sold separately)
Current Draw
- 10 mA
Expected Battery Life
- Carbon: Approx. 50 hours
- Alkaline: Approx. 80 hours
Accessories
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
- Carbon-zinc battery (9V, 6F22)
Options (sold separately)
- AC adaptor: PSA series
Size & Weight (including battery)
- Width: 73 mm / 2-7/8 inches
- Depth: 129 mm / 5-1/8 inches
- Height: 59 mm / 2-3/8 inches
- Weight: 360 g / 13 oz
