Description
Introducing the DD-8 — the most wide-ranging and feature-rich BOSS compact series delay ever. This loaded pedal delivers more of everything—more great sounds, more delay time, more control options, and more connectivity. And it does it all in a standard BOSS pedal that slides easily into any mono or stereo setup. Eleven modes provide delay colors from basic to exotic, plus a looper with unlimited overdub capability and external control support. For maximum versatility in a minimum amount of space, there’s no better delay stomp than the DD-8.
Features
- The most advanced BOSS compact series delay ever
- Eleven versatile modes include basic digital delay, vintage echoes, shimmer, mod, looper, and more
- Looper with up to 40 seconds of recording, overdub capability, and three-pedal operation
- New delay types: Warm, +RV (delay+reverb), and GLT (rhythmic delay)
- Up to 10 seconds of delay time with tap tempo input
- Carryover switch for delay trails
- True stereo I/O and three selectable output modes
- Smart I/O jacks for mono, stereo, wet/dry, and more
- External control support with footswitches or expression pedal
- Unique Twist function in every delay mode
- BOSS five-year warranty
Specifications
Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Bypass: Buffered bypass
Controls

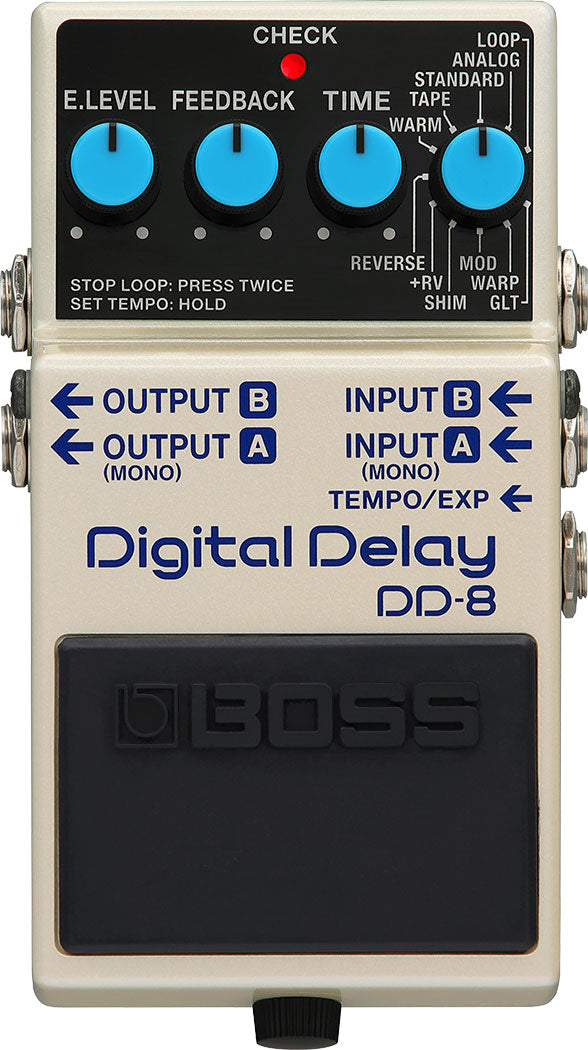

MODE knob, TIME knob, FEEDBACK knob, E.LEVEL knob, CARRYOVER switch, Pedal switch
Indicators
CHECK indicator (battery check)
Connectors
INPUT-A(MONO)/INPUT-B: 1/4-inch phone type
OUTPUT-A(MONO)/OUTPUT-B: 1/4-inch phone type
TEMPO/EXP jack: TRS 1/4-inch phone type
DC IN jack
Power Supply
Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series, sold separately)
Current Draw: 100 mA
Battery Life: Approx. 3.5 hours (alkaline, varies by conditions)
Accessories
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," "Information")
Dry battery (9 V, 6LR61)
Options (sold separately)
AC adaptor: PSA series
Footswitch: FS-5U, FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
Size and Weight
Width: 73 mm (2-7/8 inches)
Depth: 129 mm (5-1/8 inches)
Height: 59 mm (2-3/8 inches)
Weight: 440 g (1 lb, including battery)
