Description

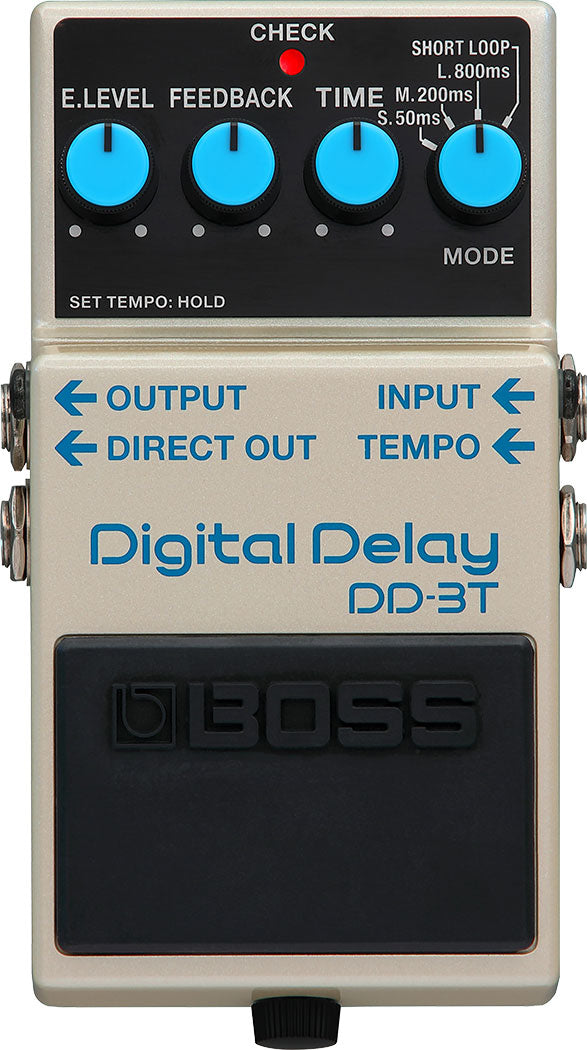

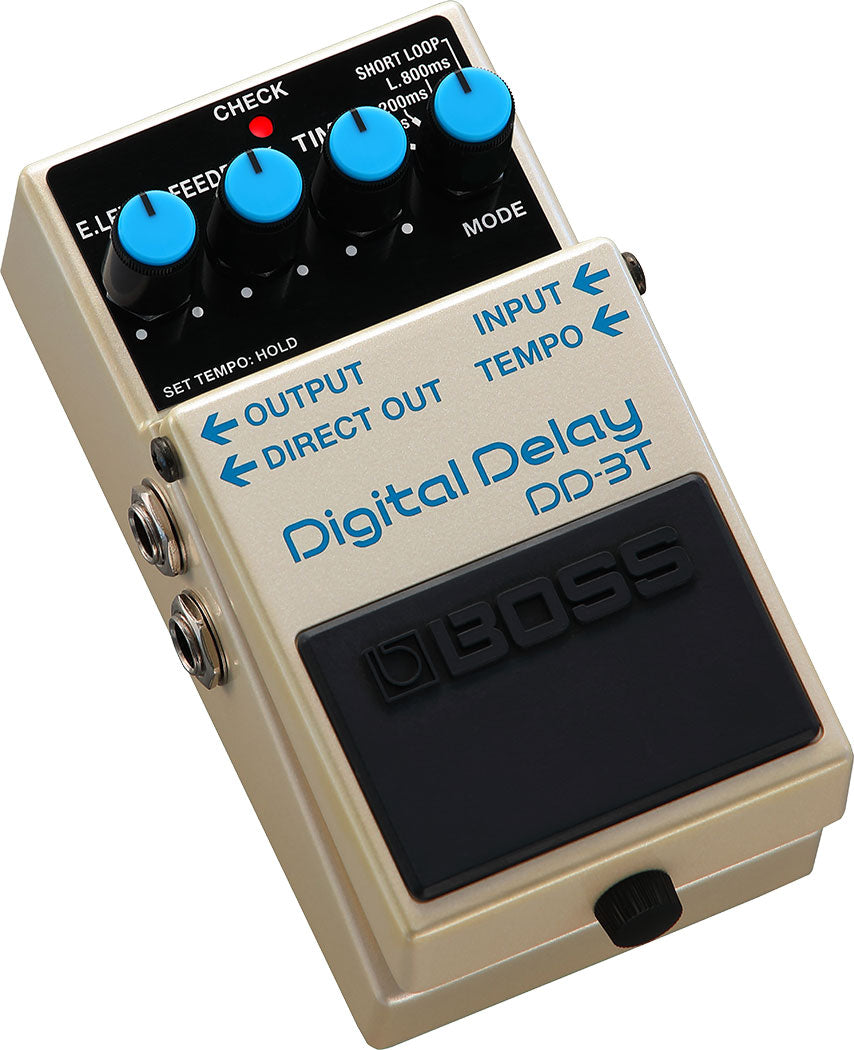

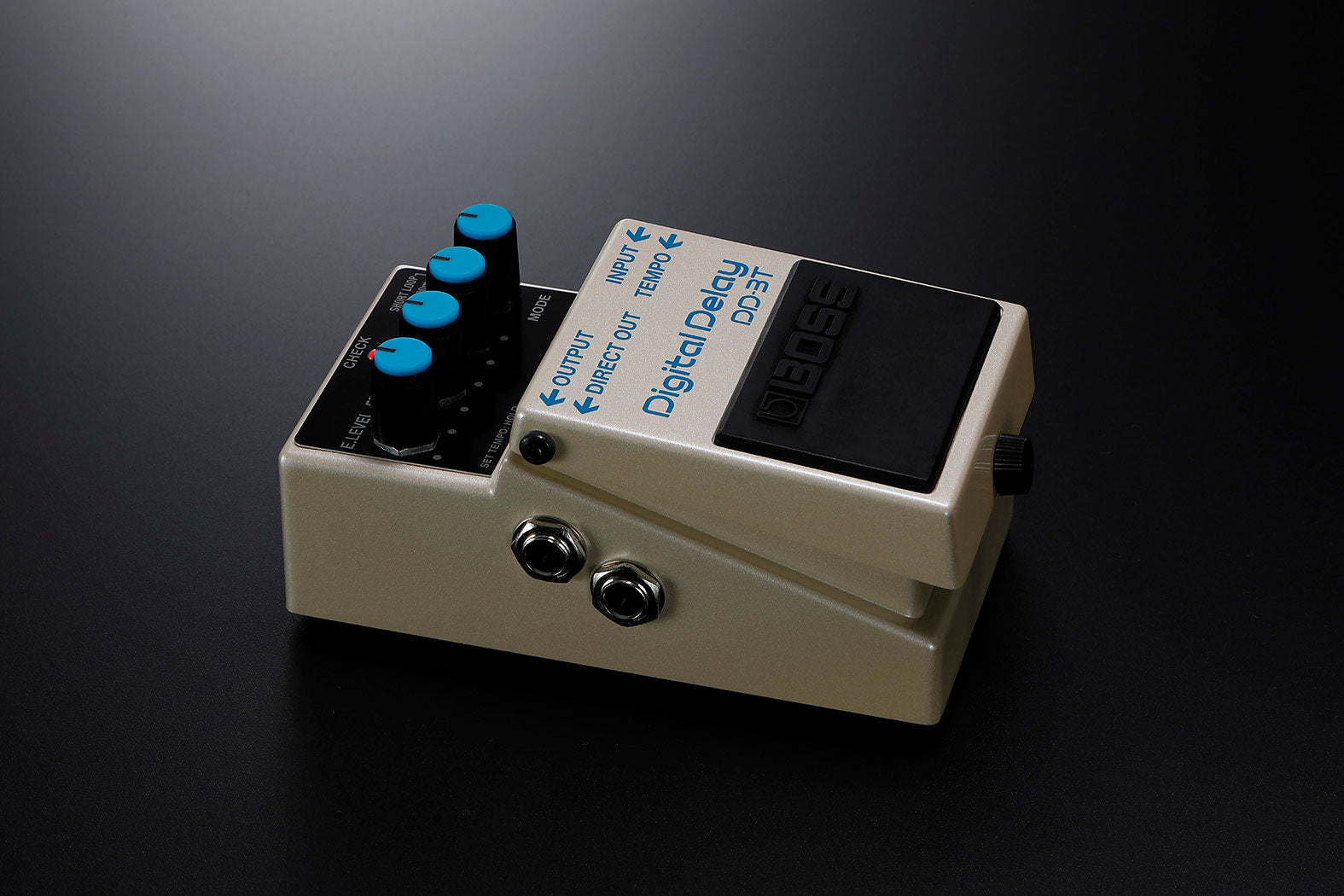

BOSS DD-3T Digital Delay
The BOSS DD-3T is the updated version of the industry-standard DD-3, loved by guitarists since 1986 for its great sound and simple operation. With enhanced modern functionality, the DD-3T retains the classic tone and control layout while adding tap tempo input and improved connectivity. Players can now easily sync delay tempos using the onboard pedal switch or an external footswitch, with selectable beat subdivisions for versatile performance. Its redesigned output layout makes wet/dry setups more intuitive, keeping the DD-3T the go-to compact delay pedal for working musicians.
Features
- Updated version of the legendary DD-3 Digital Delay
- Classic delay tone with ultra-easy operation
- Delay time range from 12.5 ms to 800 ms
- Tap tempo via onboard pedal switch or external footswitch
- Three beat subdivision options for flexible rhythm integration
- Short Loop setting provides phrase looping (same as original DD-3 Hold function)
- Direct output now placed alongside main output for simplified wet/dry setups
- BOSS five-year warranty
Specifications
- Nominal Input Level: -20 dBu
- Input Impedance: 1 M ohm
- Nominal Output Level: -20 dBu
- Output Impedance: 1 k ohm
- Recommended Load Impedance: 10 k ohms or greater
- Bypass: Buffered bypass
Controls
- MODE knob
- TIME knob
- FEEDBACK knob
- E. LEVEL (Effect Level) knob
- Pedal switch
Indicator
- CHECK indicator (also functions as battery check indicator)
Connectors
- INPUT jack: 1/4-inch phone type
- OUTPUT jack: 1/4-inch phone type
- DIRECT OUT jack: 1/4-inch phone type
- TEMPO jack: 1/4-inch phone type
- DC IN jack
Power Supply
- Alkaline battery (9V, 6LR61)
- AC adaptor (PSA series, sold separately)
Current Draw
- 70 mA
Expected Battery Life
- Alkaline: Approx. 5 hours (varies with use conditions)
Accessories
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
- Alkaline battery (9V, 6LR61)
Options (sold separately)
- AC adaptor: PSA series
- Footswitches: FS-5U, FS-6, FS-7
Size & Weight (including battery)
- Width: 73 mm / 2-7/8 inches
- Depth: 129 mm / 5-1/8 inches
- Height: 59 mm / 2-3/8 inches
- Weight: 420 g / 15 oz
