Description

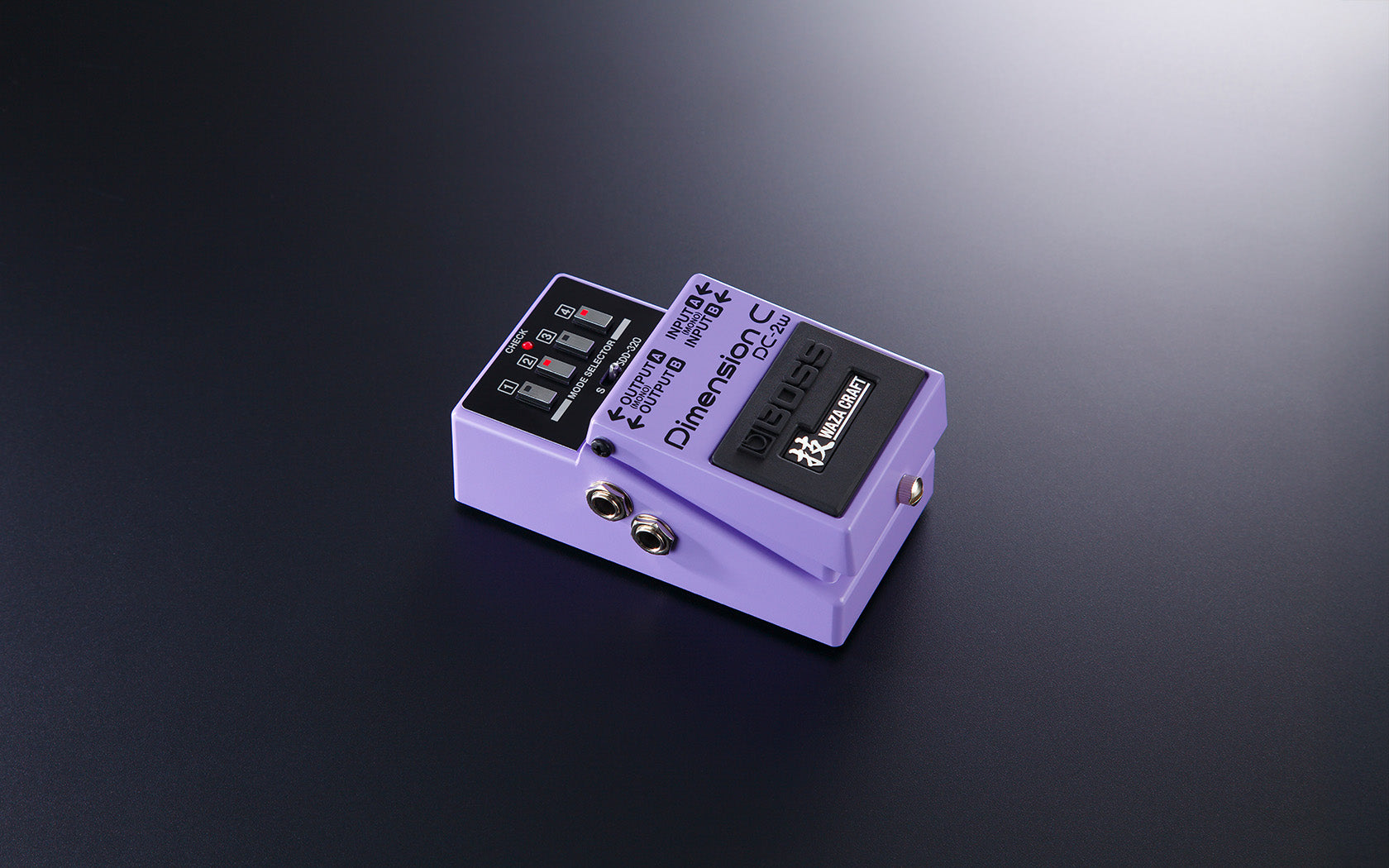

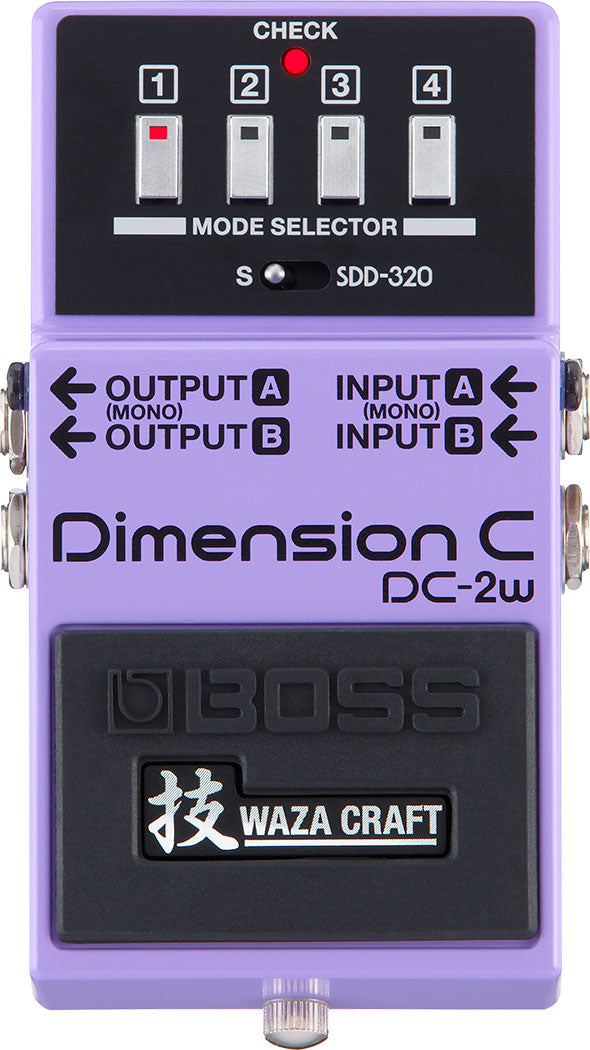

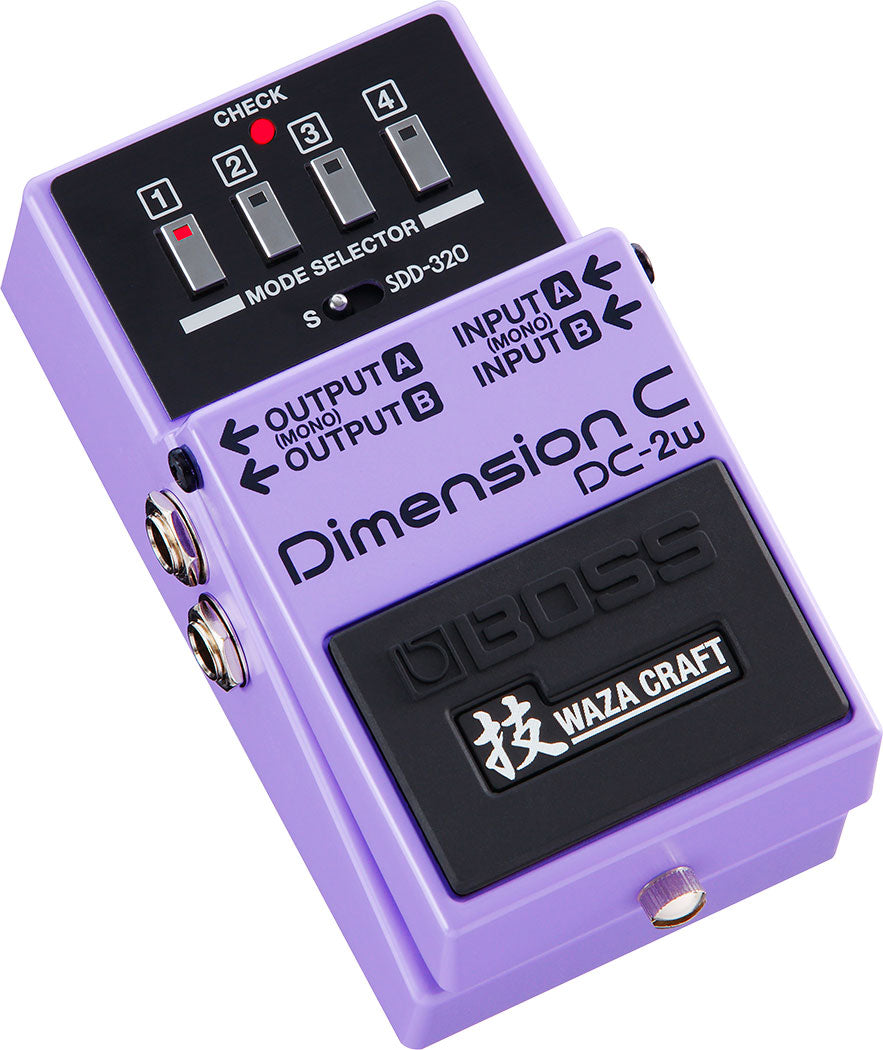

BOSS DC-2W Waza Craft Dimension C
The genuine BOSS and Roland Dimension effect is back—now more versatile than ever! Designed in the premium Waza Craft analog tradition, the DC-2W faithfully recreates the iconic DC-2 Dimension C pedal and the legendary Roland SDD-320 Dimension D studio rack effect. Featuring the same intuitive four-button interface as the original ’80s-era unit, the DC-2W is expanded with electronic switching and multiple sonic variations for unmatched width and depth. Built in Japan with Waza Craft quality, the DC-2W delivers the ultimate Dimension experience.
Features
- Premium Waza Craft pedal with all-analog audio circuitry
- Standard mode provides the classic DC-2 Dimension C sound
- SDD-320 mode authentically reproduces the Roland Dimension D rack effect
- Four-button preset interface with 20 total sound variations
- Premium buffer and enhanced bypass circuitry
- Versatile stereo I/O for guitar, bass, keyboards, and studio applications
- Made in Japan
- BOSS five-year warranty
Specifications
- Modes: S (Standard), SDD-320
- Nominal Input Level: -20 dBu
- Input Impedance: 2.2 M ohms
- Nominal Output Level: -20 dBu
- Output Impedance: 1 k ohm
- Recommended Load Impedance: 10 k ohms or greater
- Bypass: Buffered bypass
Controls
- Pedal switch
- S/SDD-320 switch
- MODE SELECTOR [1]–[4] buttons
Indicators
- CHECK indicator (also serves as battery check)
- MODE SELECTOR [1]–[4] indicators
Connectors
- INPUT A (MONO) jack: 1/4-inch phone type
- INPUT B jack: 1/4-inch phone type
- OUTPUT A (MONO) jack: 1/4-inch phone type
- OUTPUT B jack: 1/4-inch phone type
- DC IN jack
Power Supply
- Alkaline battery (9V, 6LR61)
- AC adaptor (PSA series, sold separately)
Current Draw
- 65 mA
Expected Battery Life
- Alkaline: Approx. 6 hours
- * Varies depending on conditions of use
Accessories
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
- Alkaline battery (9V, 6LR61)
Options (sold separately)
- AC adaptor: PSA series
Size & Weight (including battery)
- Width: 73 mm / 2-7/8 inches
- Depth: 129 mm / 5-1/8 inches
- Height: 59 mm / 2-3/8 inches
- Weight: 450 g / 1 lb
