Description

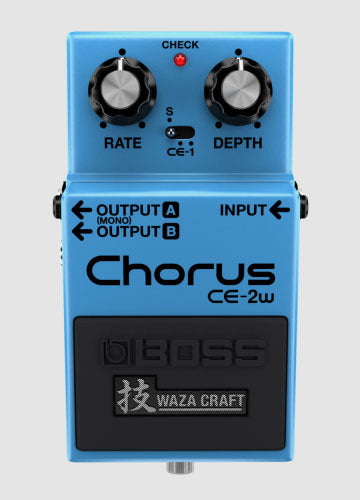

BOSS CE-2W Waza Craft Chorus
Launched in 1976, the CE-1 Chorus Ensemble was the world’s first chorus pedal and the very first BOSS pedal. Three years later, the CE-2 Chorus brought that iconic sound into a compact pedal. Four decades later, the spacious modulated tone of BOSS chorus is reborn in the CE-2W Waza Craft, delivering authentic analog chorus and vibrato with modern refinements. Handcrafted in Japan, the CE-2W offers legendary sounds in a premium Waza Craft edition.
Features
- Waza Craft innovation for a premium analog tone experience
- Standard mode faithfully reproduces the legendary CE-2 sound
- CE-1 mode features authentic chorus and vibrato, including stereo output and variable depth not found in the original
- Rate and Depth knobs provide precise sound adjustment
- Premium all-analog circuitry with bucket-brigade (BBD) delay line
- Made in Japan
- BOSS five-year warranty
Specifications
- Modes: Standard, CE-1 Chorus, CE-1 Vibrato
- Nominal Input Level: -20 dBu
- Input Impedance: 1 M ohm
- Nominal Output Level: -20 dBu
- Output Impedance: 1 k ohm
- Recommended Load Impedance: 10 k ohms or greater
- Bypass: Buffered bypass
Controls
- Pedal switch
- Standard/CE-1 Mode switch
- RATE knob
- DEPTH knob
Indicator
- CHECK indicator (also serves as battery check)
Connectors
- INPUT jack: 1/4-inch phone type
- OUTPUT A (MONO) jack: 1/4-inch phone type
- OUTPUT B jack: 1/4-inch phone type
- DC IN jack
Power Supply
- Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22)
- AC adaptor (PSA series, sold separately)
Current Draw
- 25 mA
Expected Battery Life
- Alkaline: Approx. 32 hours
- Carbon: Approx. 18 hours
- * Varies depending on conditions of use
Accessories
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
- Alkaline battery (9V, 6LR61)
Options (sold separately)
- AC adaptor: PSA series
Size & Weight (including battery)
- Width: 73 mm / 2-7/8 inches
- Depth: 129 mm / 5-1/8 inches
- Height: 59 mm / 2-3/8 inches
- Weight: 450 g / 1 lb
