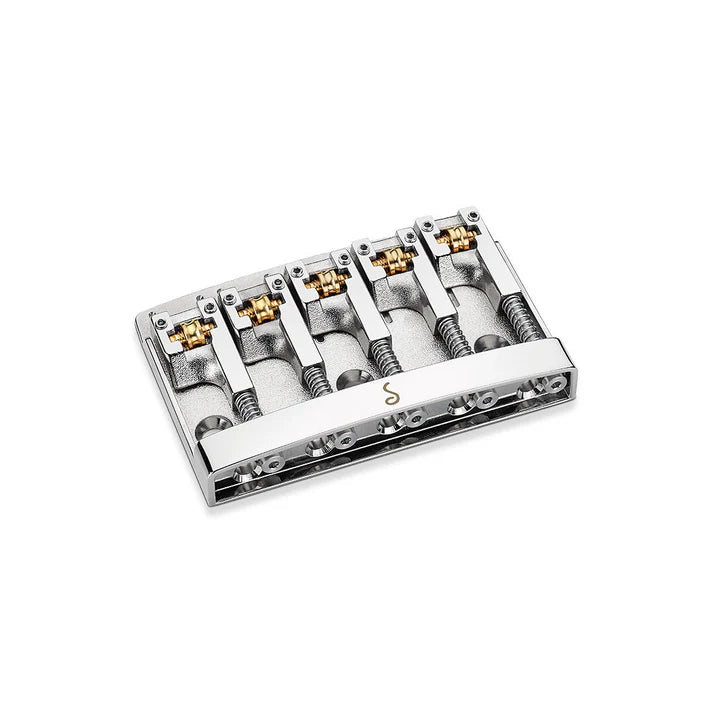

Schaller 5-String Bass Bridge (BB-0322)
Designed for precision, sustain, and stability on modern 5-string basses. Low-friction roller saddles help prevent string breakage while keeping intonation and tuning solid. Heavy, precisely machined construction delivers extra-long sustain, with full 3-D adjustment for action, intonation, and string spacing.
Key Features
• 5-string roller bridge saddles minimize string breakage
• 3-dimensional adjustment: string height, intonation, and spacing
• Individual saddle adjustment for precise intonation
• Heavy, precise build for long sustain
• Includes 3 mm spacer/baseplate
• Roller widths optimized for standard 5-string tuning: B–E–A–D–G
Technical Specifications
• String spacing (E–A overall): 65–70 mm
• String spacing (individual): 13.5–18.8 mm
• Fingerboard radius compatibility: 7"–20"
• Minimum G/D string height above body: 12 mm
• Height adjustment range: 5 mm
• Maximum string gauge: .135
• Weight: 212 g (274 g with accessories)
• Left-handed version: Not available
• Height adjustment screw: Grub screw with conical point, hex socket M3×8
Scope of Supply
• 3 mounting screws
• 1.5 mm Allen key
• 3 mm baseplate (spacer) and screws
Finishes

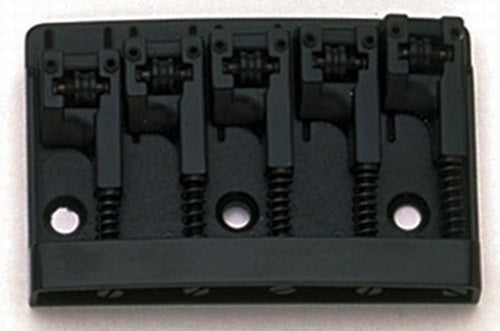

• Black or Chrome
