Description
Allparts Select
Allparts “Select” represents the very best Allparts has to offer in quality, features, and exclusivity.
Model Overview

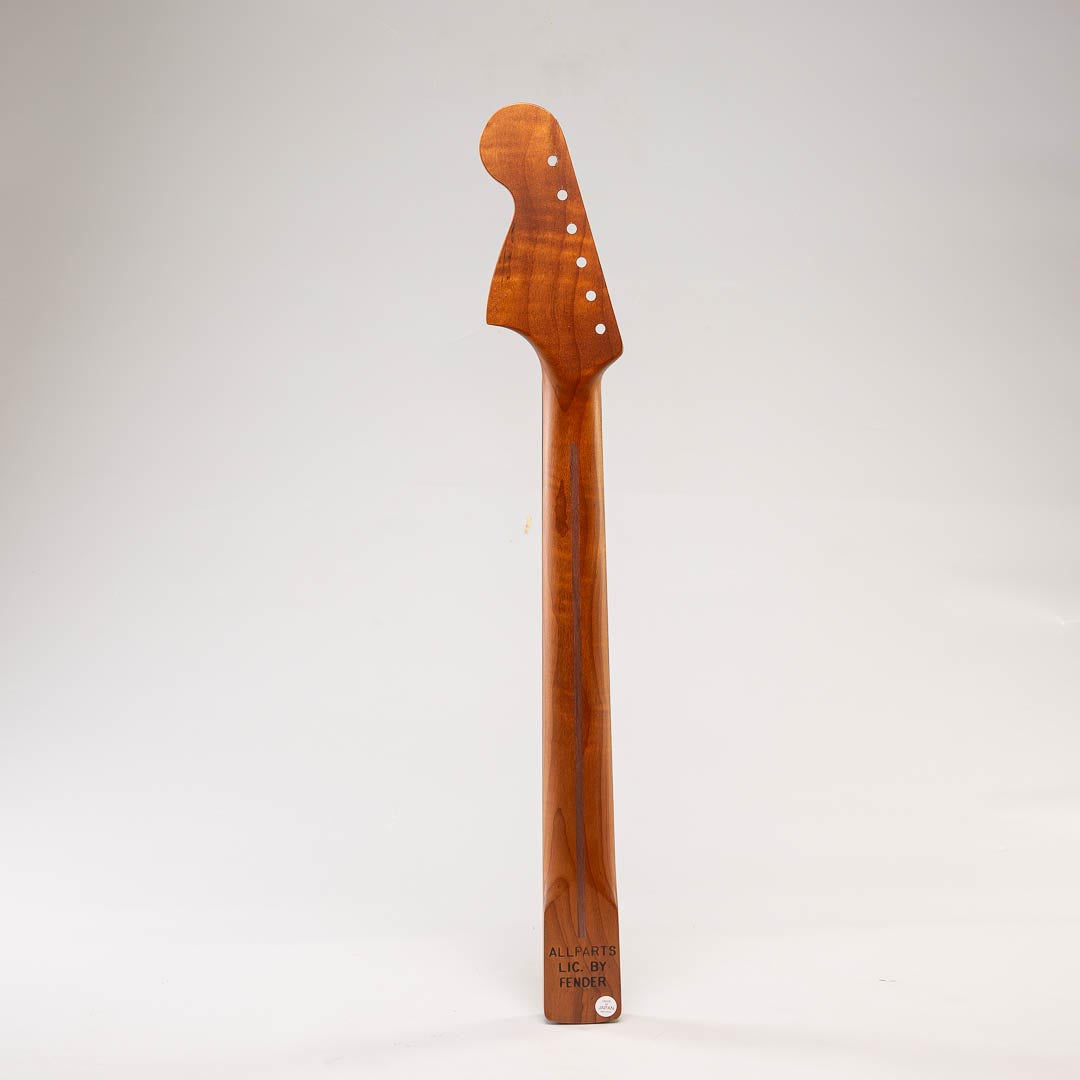

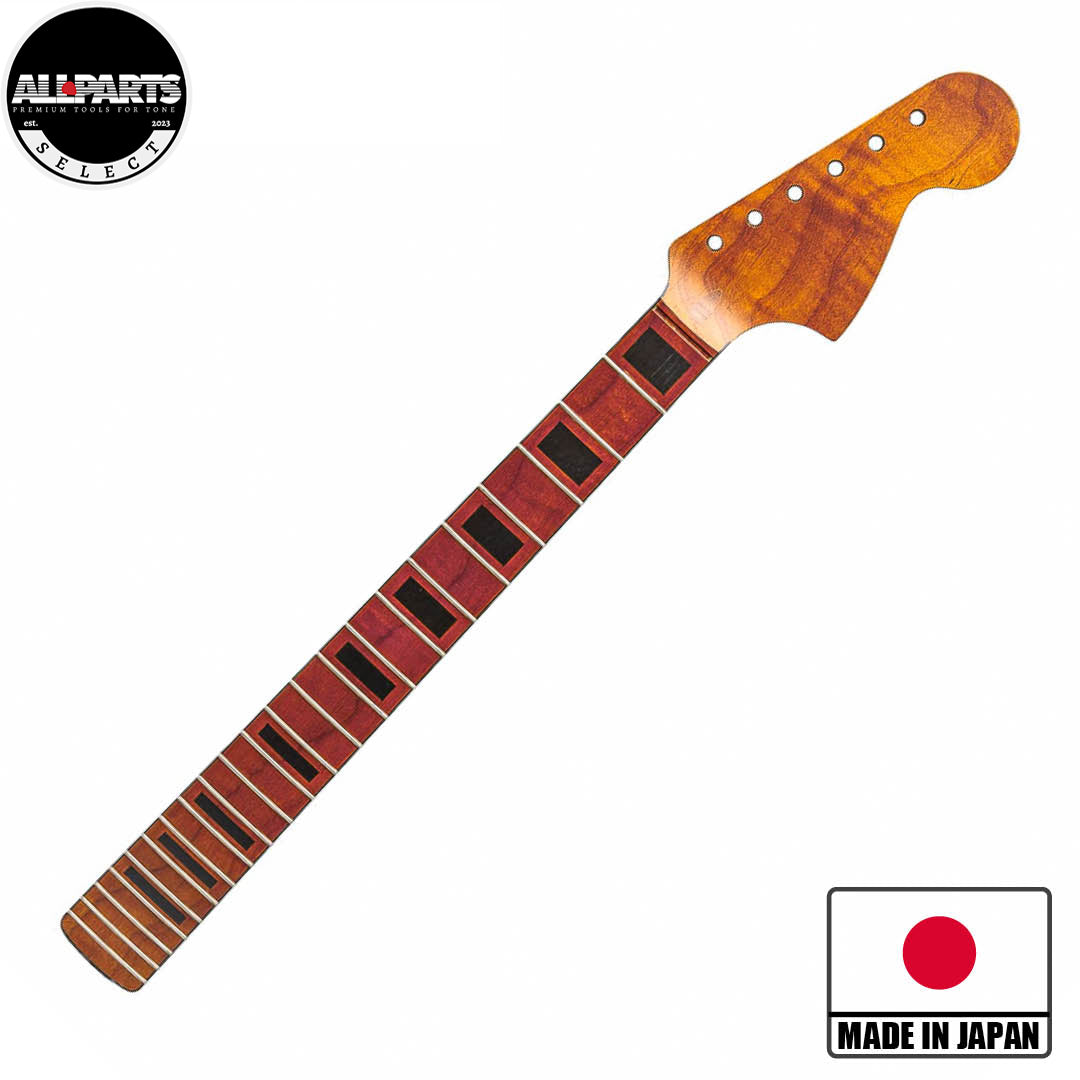

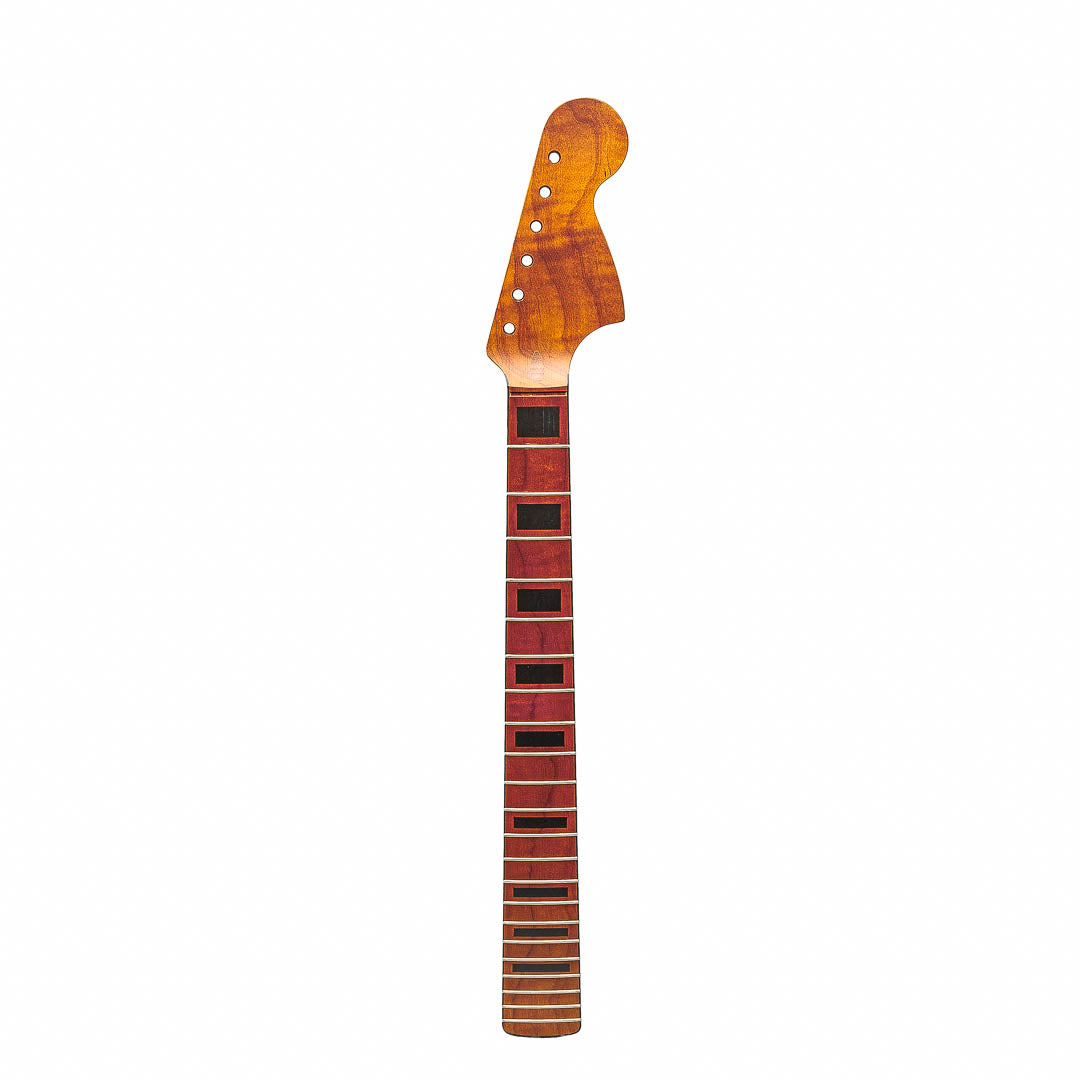

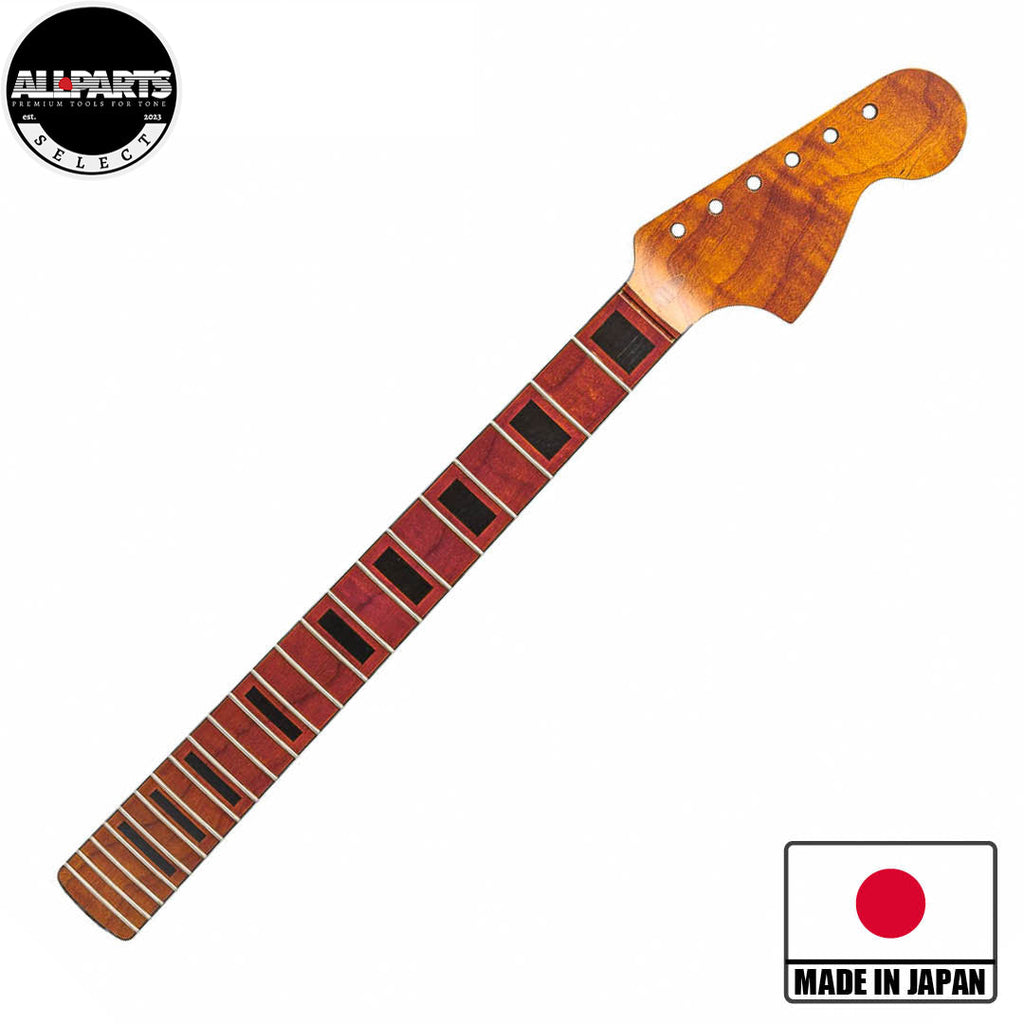

Officially licensed by Fender® and made in Japan, this Allparts Select “Vin-Mod” Jaguar® replacement neck features AAA+ roasted flame maple, a modern thin-C profile, 22 tall narrow frets, vintage compound 7.25"-10" radius, satin polyurethane finish, black block inlays, and matching fretboard binding.
Features and Specifications
- Scale Length: 24"
- Neck Profile: Modern thin-C
- Frets: 22 tall narrow, 0.079" x 0.055"
- Wood: 1-piece roasted AAA+ flame maple with bound fretboard
- Finish: Satin polyurethane
- Fretboard Radius: Vintage compound 7.25"-10"
- Inlays: Black blocks and fretboard binding with white side dots
- Nut Width: 1-5/8"
- Heel Width: 2-3/16"
- Heel Shape: Round
- Tuning Peg Holes: Vintage 2-step, 0.34" / 8.5mm bushing hole, 0.25" / 6.5mm post hole

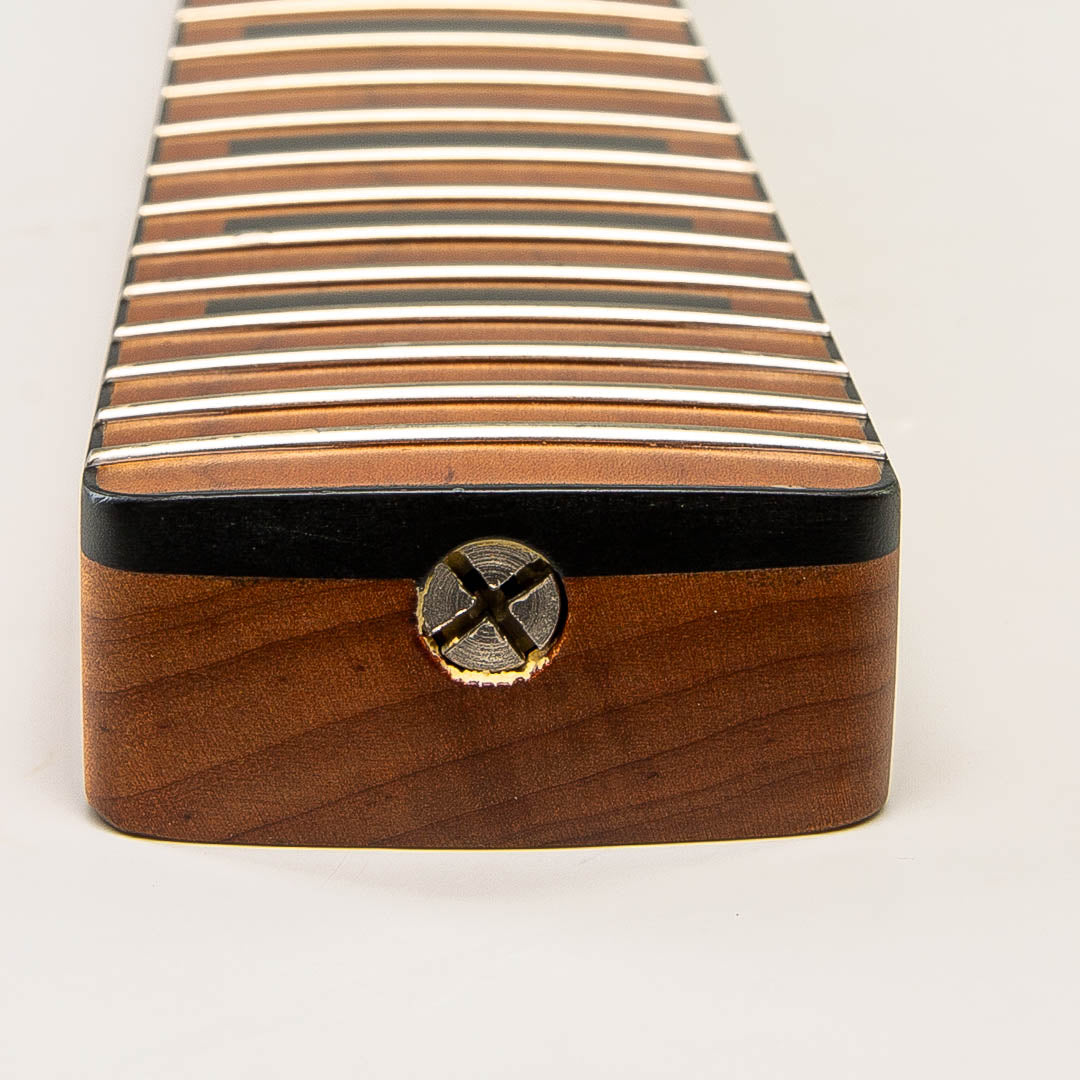

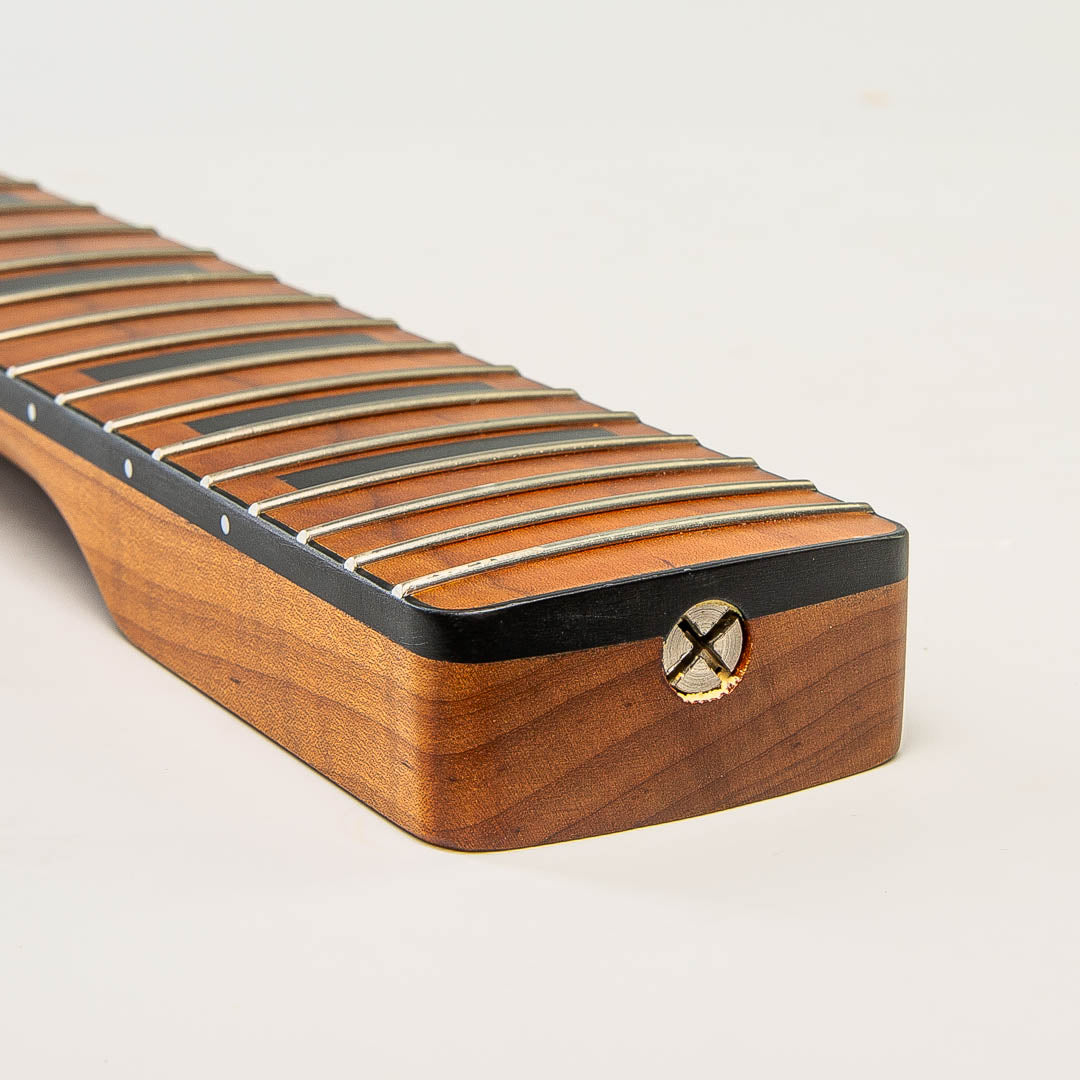

- Truss Rod Adjustment: Heel
- Neck Thickness: 0.82" at first fret, 0.90" at twelfth fret
Important Notes
- Wood grain varies from neck to neck. Your neck may differ slightly from what is pictured.
- All necks have a limited lifetime warranty against defects in materials and workmanship.
- All necks may require fret leveling and polishing. This is normal and not a defect.
- To protect against moisture, we recommend sealing unfinished necks prior to installation.
- Due to the lack of moisture in roasted maple, the risk of cracking is more apparent. When drilling screw holes, measure carefully and use the correct drill bit. Do not force screws into undersized holes.
